BLUETTI Apex 300 太陽能發電機及 2 件 B300K 使用手冊

一、簡介

This manual provides essential information for the safe and efficient operation of your BLUETTI Apex 300 Solar Generator and B300K Expansion Batteries. Please read this manual thoroughly before using the product and retain it for future reference.

Figure 1: BLUETTI Apex 300 Solar Generator with two B300K Expansion Batteries.

2. 產品結束view

2.1 主要特點

• Storm-Ready Power: The Apex 300 combined with two B300K batteries provides 8.3kWh capacity, 3840W continuous output, and 7680W surge power, capable of sustaining homes or RVs for 2-4 days during outages. It reliably powers essential appliances like refrigerators and medical equipment.
• Direct Plug & Play: Equipped with 6 AC outputs, the Apex 300 allows direct powering of RV appliances and indoor AC units without requiring shore power hookups. Its 7680W surge capability handles heavy loads efficiently.
• 雙卷tag輸出： Offers simultaneous 120V/240V output, enabling the operation of various appliances including refrigerators, AC units, and EV chargers without voltage compromises.
• 多種充電方式： Supports diverse charging methods including solar (2400W built-in, expandable to 6400W), AC (80% charge in 45 minutes), and generator (compatible with 95% of generators) for flexible and rapid power restoration.
• Industry-Leading Efficiency: Achieves a low 20W idle loss, providing 200% better efficiency and up to 3 times more runtime for low-power devices compared to standard units.

2.2 包含的組件

• BLUETTI Apex 300 Power Station (x1)
• BLUETTI B300K Expansion Batteries (x2, shipped separately)
• AC Charging Cable (x1)
• Car Charging Cable (x1)
• Grounding Screw (x1)
• 使用者手冊 (x1)

Figure 2: All components included in the BLUETTI Apex 300 and B300K High-Capacity Expansion Kit.

3. 安全訊息

請務必遵守以下安全準則，以防止受傷或損壞產品：

• 請勿拆卸，修理或改裝設備。
• 請將本產品遠離火源、水源及極端溫度。
• 使用和充電時請確保通風良好。
• Use only BLUETTI-approved accessories and cables.
• 請將其放在兒童和寵物接觸不到的地方。
• 如果發生火災，請使用乾粉滅火器。

Figure 3: Safety features of the BLUETTI Apex 300, including Flame-Free LFP Battery and Smart Battery Management.

4. 設定

4.1 開箱和初步檢查

Carefully remove all components from the packaging. Inspect for any damage during transit. If any damage is found, contact customer support immediately.

4.2 Connecting Expansion Batteries (B300K)

To expand the capacity of your Apex 300, connect the B300K expansion batteries using the provided cables. Ensure the connections are secure. The Apex 300 can be expanded with multiple B300K units for increased power storage.

4.3 接地

For safety, connect the grounding screw to an appropriate ground source as per local electrical codes.

5. 操作

5.1 開關機

Press and hold the main power button on the Apex 300 to turn the unit on or off. The display will illuminate upon activation.

5.2 AC Output and Voltag電子選擇

The Apex 300 provides 6 AC outlets. Use the voltage selector switch to choose between 120V or 240V output depending on your appliance requirements. The unit supports simultaneous dual-voltage 輸出。

5.3 ECO Mode and Charging Modes

The Apex 300 features an ECO mode to conserve energy when loads are low. You can also select between Silent, Auto, and Turbo charging modes to optimize charging speed and noise levels.

Figure 4: Front panel display of the BLUETTI Apex 300, showing operational status and settings.

6. 充電

The Apex 300 offers multiple flexible charging options:

• 交流充電： Connect the AC charging cable to a standard wall outlet. The unit can reach 80% charge in approximately 45 minutes.
• 太陽能充電： Connect compatible solar panels to the DC/PV input ports. The Apex 300 has a 2400W built-in solar input and can be expanded to 6400W with additional accessories.
• 發電機充電： The unit is compatible with 95% of generators, providing another reliable charging method.
• 汽車充電： 使用車載充電線，透過車輛的 12V 電源插座充電。

Figure 5: Solar fast charging setup for the BLUETTI Apex 300.

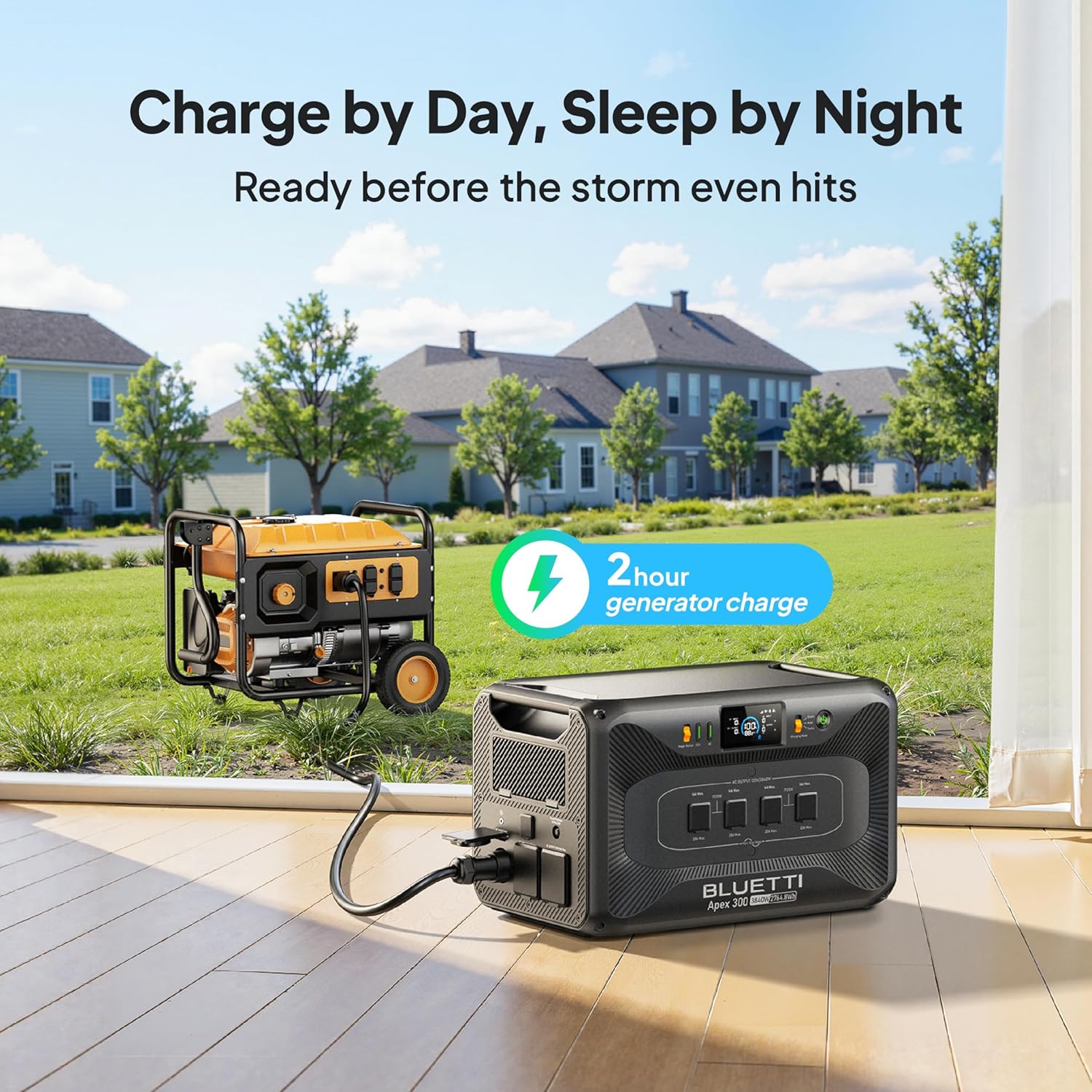

Figure 6: BLUETTI Apex 300 charging from a generator.

7. 規格

8、維護保養

To ensure the longevity and optimal performance of your BLUETTI Apex 300 and B300K batteries, follow these maintenance guidelines:

• 打掃： 請使用乾燥柔軟的布清潔設備外部。請勿使用刺激性化學物質或研磨性材料。
• 貯存： Store the unit in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, charge the unit to approximately 50-80% every 3-6 months.
• 電池健康狀況： Avoid fully discharging the batteries frequently. Regular partial discharges and recharges are beneficial for LFP battery health.
• 固件更新： Regularly check for and install firmware updates via the BLUETTI app to ensure optimal performance and access to new features.

9。 故障排除

If you encounter any issues with your BLUETTI Apex 300, refer to the following common troubleshooting steps:

• 設備未通電： Ensure the unit is charged. Check all cable connections.
• 無交流輸出： Verify that the AC output is enabled on the control panel. Check the circuit protector for any trips. Ensure the connected appliance is within the unit's wattage 限制。
• 充電問題： Confirm that charging cables are securely connected. For solar charging, ensure panels are correctly oriented and receiving sufficient sunlight. Check input voltage 和當前規格。
• 過載保護： If the unit shuts down due to overload, disconnect some appliances and restart the unit.

For persistent issues, please contact BLUETTI customer support.

10. 保固和支持

BLUETTI products come with a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions. For technical support, service, or warranty claims, please contact BLUETTI customer service through their official web網站或產品文件中提供的聯絡資訊。

Figure 7: BLUETTI customer support is available for assistance.
