一、簡介
The Acouto Universal Car Keyless Entry System provides a convenient way to remotely lock and unlock your vehicle's doors. This system is designed for universal compatibility with most vehicles and includes features such as remote central locking, car finding, and remote trunk release. This manual provides essential information for the proper setup, operation, and maintenance of your keyless entry system.

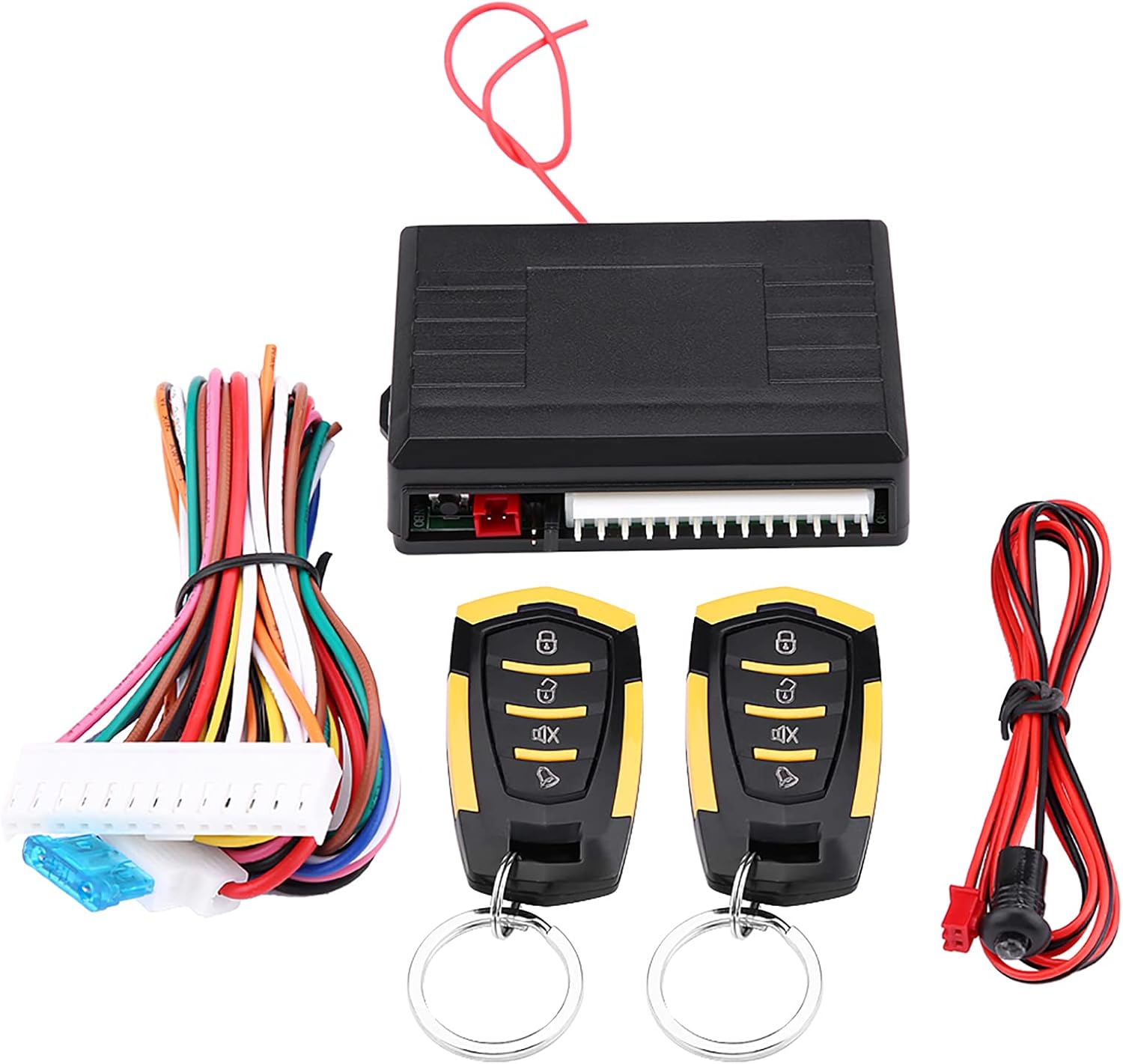

2. 包裝內容
請確認您的包裹含有下列所有物品：
- 1 個控制盒
- 2 個遙控器
- 1 x LED Connection Wire
- 1 x Set of Wiring Harness
- 1 x 使用者手冊（本文檔）
3. 規格
| 範圍 | 價值 |
|---|---|
| 模型 | LB-405/L218 |
| 卷tage | 12V±2V 直流 |
| 靜態電流 | <15mA |
| Indicator Current | 20毫安 |
| Sensor Current Impact | <1mA |
| 工作頻率 | 433.92MHZ |
| 遠端距離 | Approximately 50-80m |

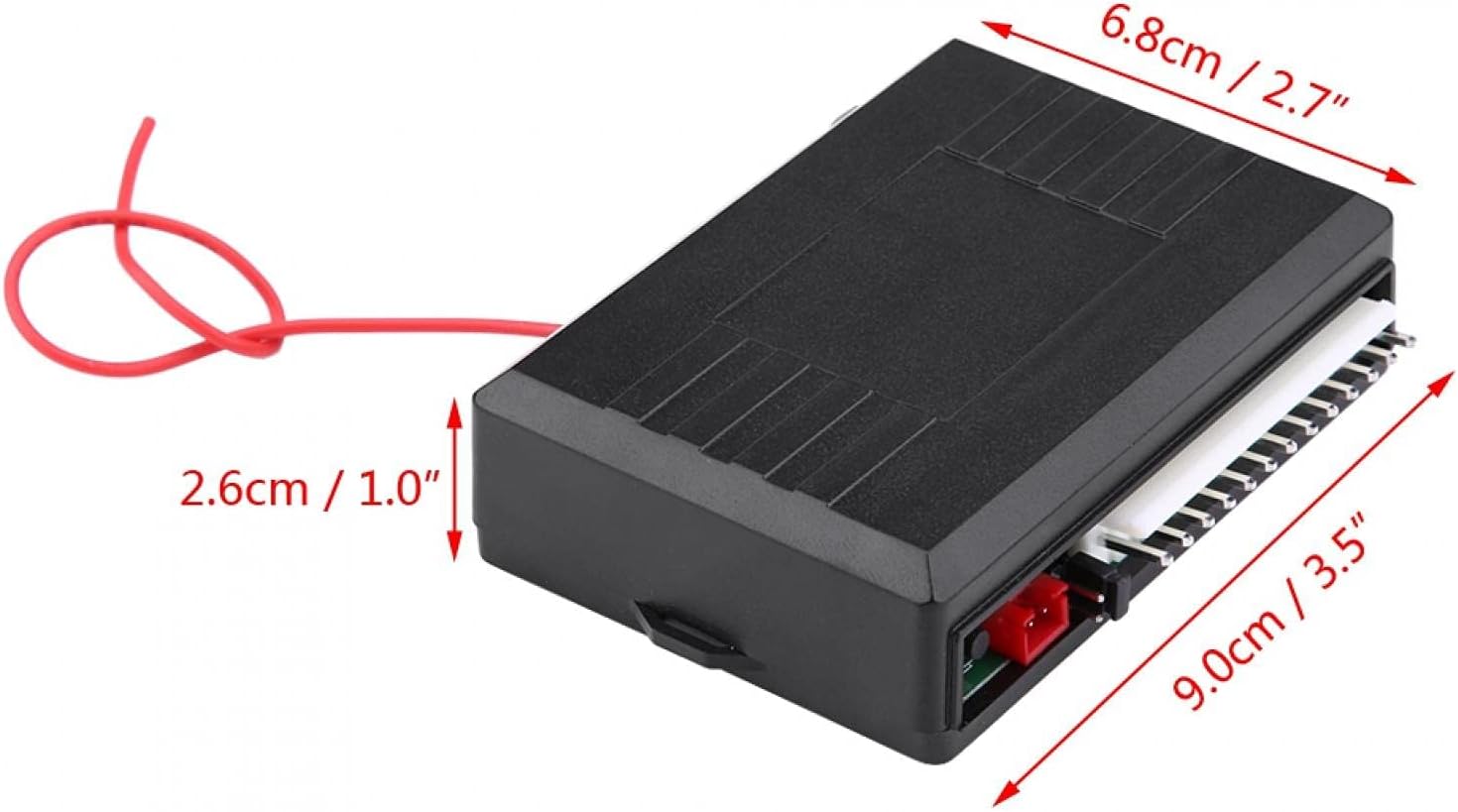

| 控制盒尺寸（長 x 寬 x 高） | 9.0 6.8點¯x2.6點¯x厘米（3.5 2.7點¯x1.0點¯x中） |
| 相容性 | Universal (Cars, Trucks, SUVs, Vans) |
4. 設定與安裝
Installation of a keyless entry system involves electrical wiring and integration with your vehicle's existing central locking mechanism. Due to the complexity and potential variations in vehicle wiring, 強烈建議由專業人員安裝。. Incorrect installation can lead to damage to the product or your vehicle's electrical system.
General Components Overview:
- 控制箱： This is the main unit that processes signals from the remote and controls the vehicle's locking system. It connects to the vehicle's power, ground, and central locking wires.
- 線束： A set of color-coded wires designed to connect the control box to various points in your vehicle's electrical system, including power, ground, door lock/unlock actuators, and the trunk release.
- LED Connection Wire: Used to connect an indicator LED, typically installed on the dashboard, to show the system's status (e.g., armed/disarmed).
Note: Detailed wiring diagrams specific to your vehicle model are crucial for proper installation. This manual does not include vehicle-specific wiring instructions. Please consult a qualified automotive technician or refer to a comprehensive vehicle wiring guide.
5. 操作說明

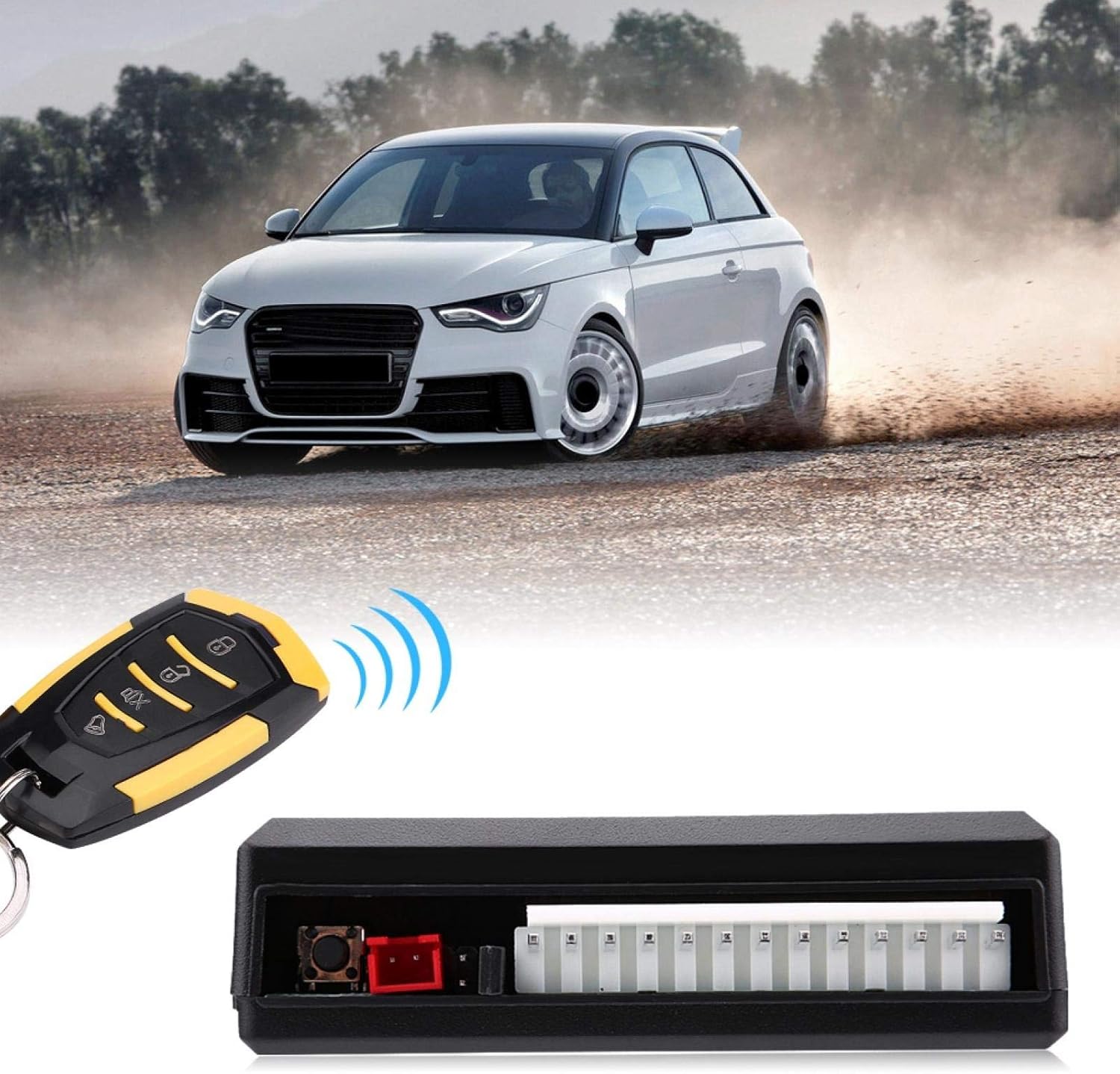

Once installed, the Acouto Keyless Entry System is operated using the provided remote controllers. The remote typically features several buttons for different functions:
- 鎖定按鈕： Press once to lock all vehicle doors. The vehicle's turn signals may flash once, and a confirmation sound (if connected to a siren) may be heard.
- 解鎖按鈕： Press once to unlock all vehicle doors. The vehicle's turn signals may flash twice, and a confirmation sound may be heard.
- Trunk Release Button (often labeled with a trunk icon or 'AUX'): Press and hold for a few seconds to remotely open the vehicle's trunk or activate an auxiliary output.
- Car Find / Panic Button (often labeled with a bell or speaker icon): Press once to locate your vehicle in a parking lot by flashing the lights and/or sounding the horn/siren. Press and hold for a few seconds to activate a panic alarm.
6、維護保養
To ensure the longevity and reliable performance of your Acouto Keyless Entry System, follow these maintenance guidelines:
- 遠程更換電池： If the remote's range decreases or it stops responding, the battery may need replacement. Refer to the remote's design for battery access (typically a small screw or clip). Use the specified battery type.
- 保持乾燥： Avoid exposing the control box and remote controllers to water or excessive moisture.
- 輕輕清潔： Clean the remote controllers with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
- 避免極端溫度： Do not leave the remote controllers in direct sunlight or in areas with extreme temperatures for extended periods.
7。 故障排除
If you encounter issues with your keyless entry system, try the following troubleshooting steps:
- 系統無響應：
- Check the remote controller battery and replace if necessary.
- Ensure you are within the operating range (50-80 meters) of the vehicle.
- Verify that the vehicle's 12V power supply to the control box is intact.
- 遙控範圍縮小：
- 更換遙控器電池。
- 確保遙控器和車輛之間沒有明顯的障礙物。
- 檢查附近是否有無線電幹擾源。
- Doors Do Not Lock/Unlock:
- Confirm that the vehicle's central locking system is functioning manually.
- Inspect the wiring connections between the control box and the vehicle's central locking actuators for looseness or damage.
- If only one door is affected, the issue might be with that specific door's actuator or wiring.
- LED 指示燈無法運作：
- Check the connection of the LED wire to the control box.
- 檢查LED本身是否損壞。
如果這些步驟無法解決問題，建議諮詢專業汽車技師。
8. 保固和支持
For information regarding warranty coverage, please refer to the purchase documentation or contact your retailer. For technical support or further assistance, please visit the official Acouto store or contact their customer service department.
