一、簡介
Thank you for choosing the HEBECA RA-203X Professional Rechargeable Electric Nail Drill. This device is designed to provide a professional manicure and pedicure experience, suitable for both natural and artificial nails. Its cordless design, adjustable speed, and ergonomic build make it ideal for home use or professional settings. Please read this manual thoroughly before first use to ensure safe and optimal operation.
2. 安全訊息
為防止人身傷害或設備損壞，請務必遵守以下安全準則：
- 眼睛保護： Always wear safety glasses when operating the nail drill to protect your eyes from flying debris or dust.
- 皮膚接觸： Avoid direct contact of the rotating tip or motor with your skin to prevent burns or irritation.
- Heat and Liquids: Keep the device away from heat sources and liquids. Do not operate with wet hands or in damp 環境。
- 孩子們： 將設備放置在兒童接觸不到的地方。
- 維護： 請勿嘗試自行拆卸或修理設備。 請聯絡客戶支援尋求協助。
- 正確使用： Use the device only for its intended purpose of nail care.
3. 包裝內容
確認包裹內所有物品齊全：
- HEBECA RA-203X Electric Nail Drill
- USB-C 充電線
- Assorted Drill Bits (Safety Bit, Needle Bit, Small Barrel, Large Barrel, Short Cone Bit, Mandrel)
- Sanding Bands (26 pieces)
- Portable Travel Pouch
- 使用者手冊
Image 3.1: Complete product kit including the nail drill, various bits, sanding bands, USB-C cable, and a grey travel pouch.
4.產品特點
The HEBECA RA-203X is equipped with advanced features for efficient and comfortable nail care:
- 強大的馬達： Delivers up to 20,000 RPM for effective filing and shaping.
- 9 個可調節速度等級： Allows precise control for various nail procedures.
- 無線和可充電： Features a 650mAh Type-C rechargeable battery, providing up to 4 hours of use after a 2.5-hour charge.
- LED顯示屏： Clearly shows current speed, rotation direction, and battery status.
- 雙重旋轉： Supports both forward and reverse rotation for left-handed and right-handed users.
- 人體工學設計： Slim and lightweight (88 grams, 145 x 24.8 mm) for comfortable grip and reduced hand fatigue.
- Low Noise, Heat, and Vibration: Engineered for a smooth and quiet operation, minimizing discomfort.
- 多功能的： Suitable for removing gel/acrylic nails, cuticle care, filing, polishing, treating thick nails, and callus removal.
圖 4.1：結束view of the HEBECA electric nail drill's main features.

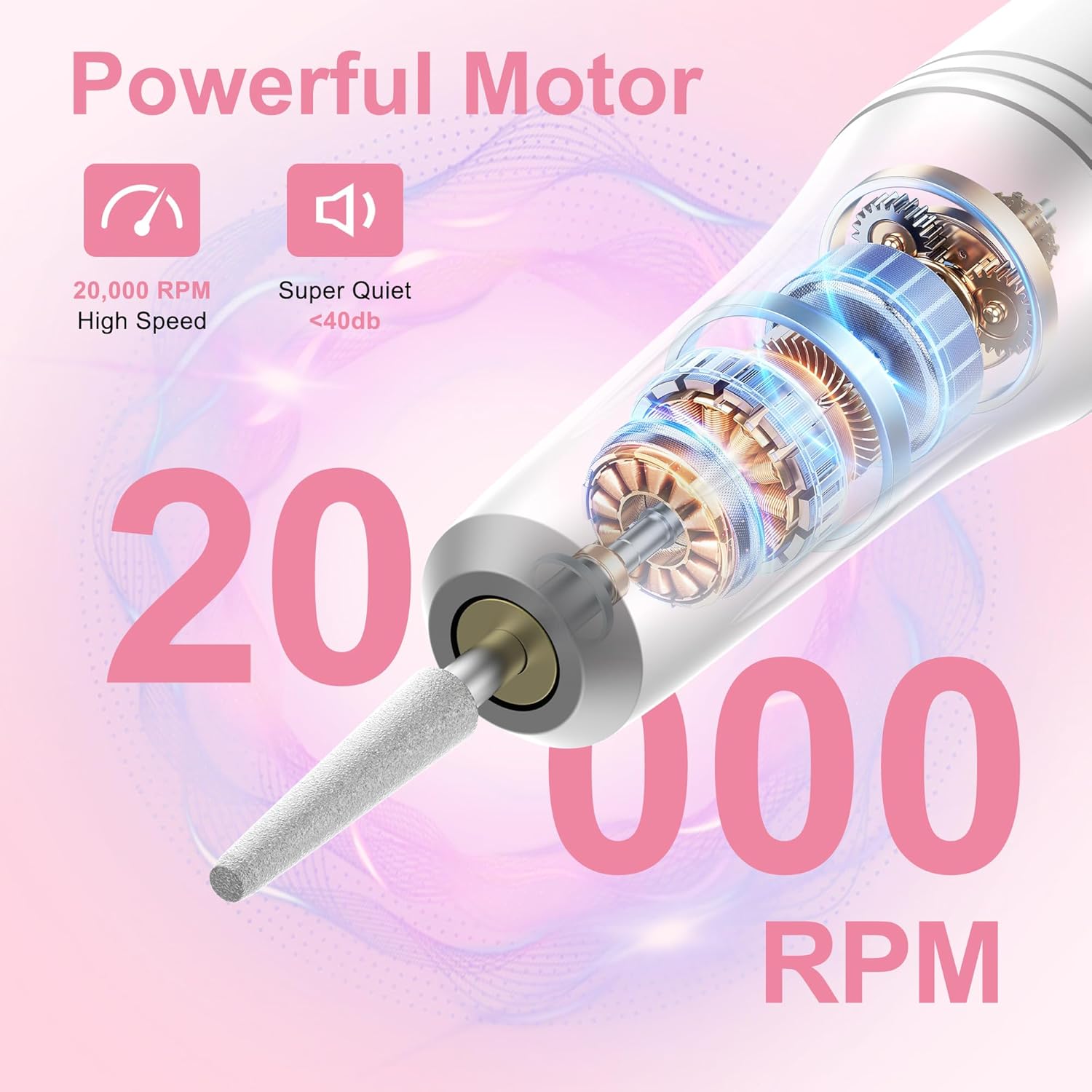

Image 4.2: Illustration of the powerful motor and low noise level.
5. 設定
5.1 給設備充電
- Connect the provided USB-C charging cable to the charging port on the bottom of the nail drill.
- Plug the other end of the USB-C cable into a 5V USB power adapter (not included).
- The LED display will indicate the charging status. A full charge takes approximately 2.5 hours.
- Once fully charged, the device can operate for up to 4 hours.

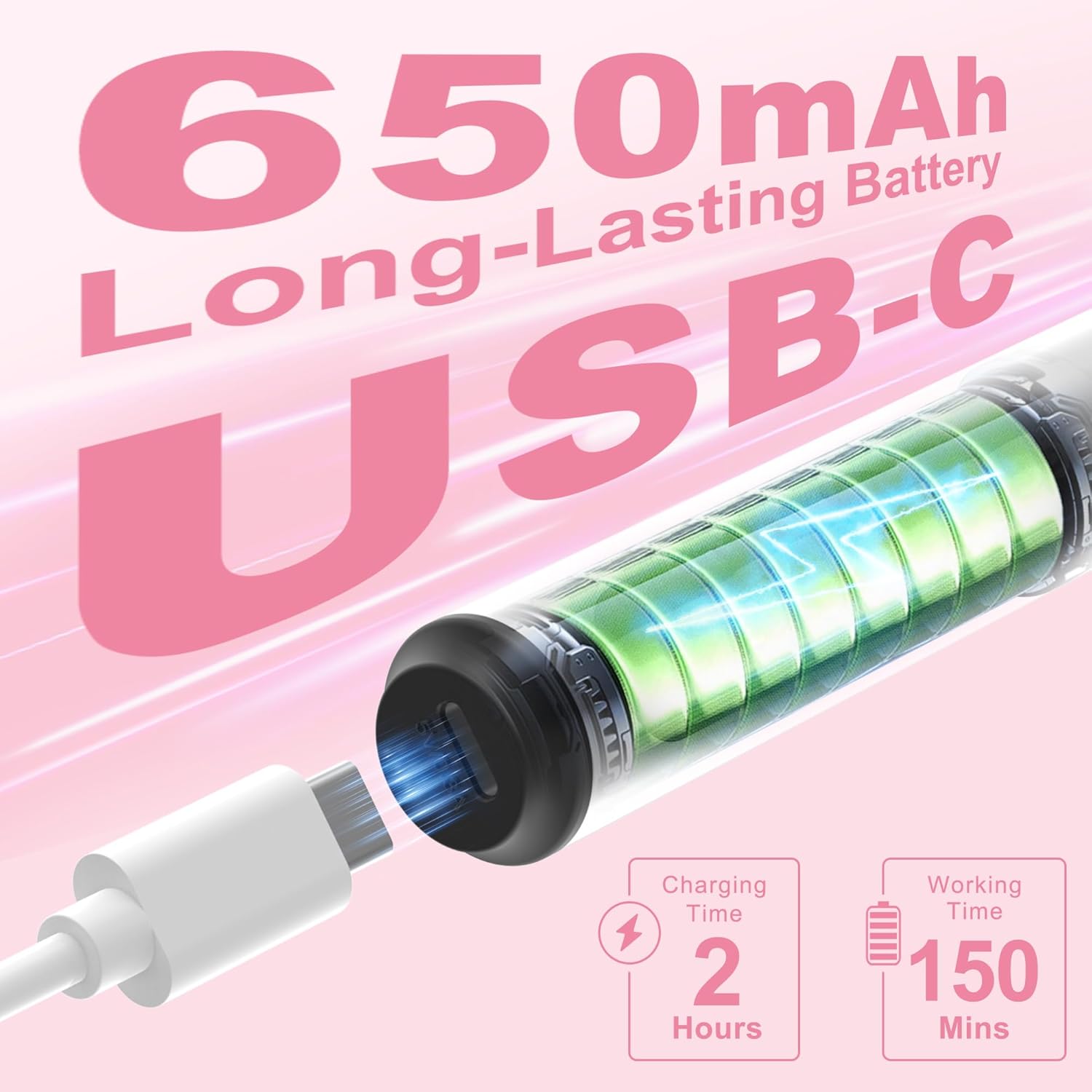

Image 5.1: Charging the device via USB-C.
5.2 安裝鑽頭
- Ensure the device is powered off before changing bits.
- 輕輕地將目前安裝的鑽頭從卡盤中拔出。
- Insert the desired bit firmly into the chuck until it clicks into place. Ensure it is securely seated to prevent wobbling during operation.

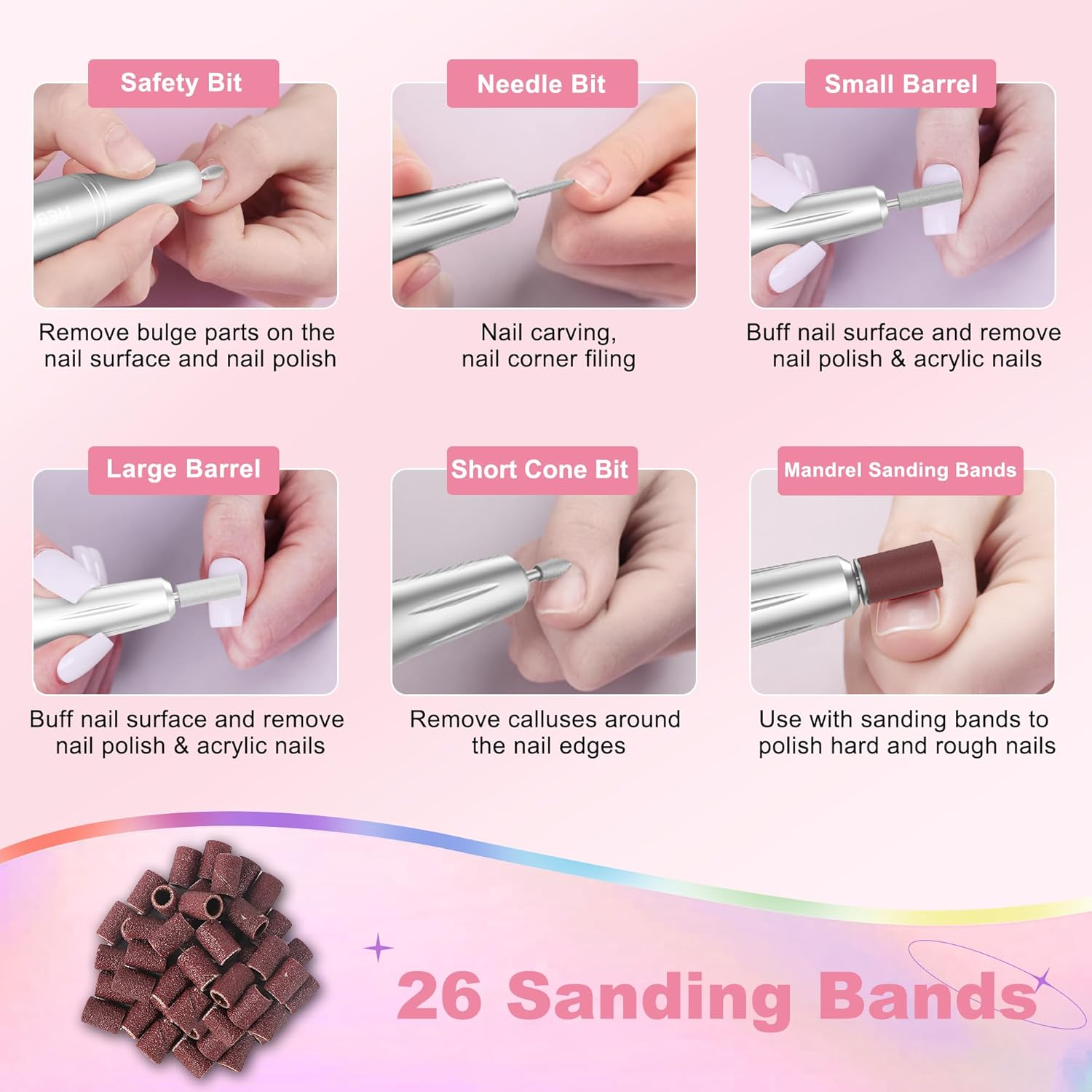

Image 5.2: Various drill bits and their applications.
6. 操作說明
6.1 電源開/關和速度調節
- 開機： Press and hold the power button (usually marked with a circle icon) for a few seconds until the LED display illuminates.
- 開始/暫停： A single click of the power button will start or pause the rotation.
- 調整速度： Use the '+' and '-' buttons to increase or decrease the rotation speed. The LED display will show the current speed level (1-9).
- 關機： 再次按住電源按鈕幾秒鐘以關閉裝置。
6.2 改變旋轉方向
- While the drill is operating, double-click the power button to switch between forward (F) and reverse (R) rotation. The LED display will indicate the current direction.
- This feature is useful for both left-handed and right-handed users, and for working on different nail areas.
Image 6.1: LED display and control buttons.
Image 6.2: Dual rotation for left/right-hand use.
6.3 一般使用技巧
- 始終從最低速度設定開始，然後根據需要逐漸增加速度。
- Apply light pressure. Excessive force can damage nails or the device.
- Keep the drill bit moving to avoid generating too much heat in one spot.
- For gel or acrylic nails, use appropriate bits and speeds for removal and shaping.
- For natural nails, use finer grit sanding bands and lower speeds for gentle shaping and buffing.
- Refer to Image 5.2 for guidance on which bit to use for specific tasks.
Image 6.3: Multi-functional applications of the electric nail file.
7、維護保養
7.1 Cleaning the Device and Bits
- 清潔前請務必確保設備已關機並拔掉電源插頭。
- Use a soft, dry cloth to wipe the body of the nail drill. Do not use harsh chemicals or abrasive cleaners.
- Remove drill bits after each use and clean them with a small brush to remove dust and debris. Bits can be disinfected with an appropriate solution.
- Replace sanding bands regularly as they wear out.
7.2 儲存
- Store the nail drill and its accessories in the provided travel pouch to protect them from dust and damage.
- 請將設備置於陰涼乾燥處，避免陽光直射受潮。
8。 故障排除
若遇到任何問題，請參考以下常見問題及解決方法：
| 問題 | 可能的原因 | 解決方案 |
|---|---|---|
| 設備無法開機 | 電池電量低；設備未充電 | 使用 USB-C 連接線將裝置充滿電。 |
| Drill bit wobbles or falls out | Bit not inserted correctly; Damaged bit | Ensure the bit is firmly inserted into the chuck. Replace damaged bits. |
| 設備在運作過程中停止 | Low battery; Overload protection activated | Recharge the device. Reduce pressure during use. |
| Excessive heat from the drill bit | Too much pressure; Bit not moving sufficiently | Apply lighter pressure and keep the bit moving across the nail surface. |
If the problem persists after trying these solutions, please contact HEBECA customer support.
9. 規格
| 特徵 | 細節 |
|---|---|
| 型號 | RA-203X |
| 品牌 | 赫貝卡 |
| 最大轉速 | 20,000轉/分 |
| 速度等級 | 9 |
| 電池容量 | 650毫安培時鋰電池 |
| 充電時間 | 大約。 2.5小時 |
| 工作時間 | 長達 4 小時 |
| 充電口 | USB Type-C |
| 材料 | 丙烯腈丁二烯苯乙烯 (ABS) |
| 商品尺寸（長x寬x高） | 0.82 x 0.82 x 5.9 cm (approx. 145 x 24.8 mm) |
| 物品重量 | 88克 |
| 製造商 | SHENZHEN HEBECA TECHNOLOGIES CO.,LTD |
10. 保固和支持
HEBECA is committed to providing high-quality products. For warranty information, product support, or any inquiries not covered in this manual, please refer to the warranty card included with your purchase or visit the official HEBECA website. You may also contact HEBECA customer service directly through the retailer where you purchased the product.
