TWSYOXPR 2MP AHD PTZ Camera User Manual

一、簡介

This manual provides comprehensive instructions for the installation, operation, maintenance, and troubleshooting of your TWSYOXPR 2MP AHD PTZ Camera, Model C-PTZ-201. Please read this manual thoroughly before using the product to ensure correct usage and optimal performance. Retain this manual for future reference.

2. 安全訊息

• 電源供應： 請僅使用指定的電源供應器。音量設定錯誤。tage may damage the camera or pose a safety risk.
• 安裝： Ensure the camera is securely mounted to prevent it from falling. Professional installation is recommended for outdoor or high-altitude placements.
• 環境： 請勿將相機暴露在極端溫度、濕度或腐蝕性環境中。
• 打掃： 清潔前請斷開電源。使用柔軟的乾布。避免使用刺激性化學物質。
• 拆卸： 請勿嘗試拆卸或改裝相機。否則將導致保固失效並可能造成損壞。

3. 包裝內容

收到包裹後請立即檢查包裹內容。如有任何物品缺失或損壞，請聯絡零售商。

• TWSYOXPR 2MP AHD PTZ Camera (C-PTZ-201)
• 安裝配件（螺絲、牆塞）
• 使用者手冊

4. 產品結束view

The TWSYOXPR C-PTZ-201 is a 2MP AHD PTZ camera designed for security surveillance. It features 360° pan/tilt capabilities, dual infrared LED lights for night vision, coaxial control, and an IP66 weatherproof rating.

圖4.1： 正面 view of the TWSYOXPR 2MP AHD PTZ Camera, showing the lens and LED illuminators.

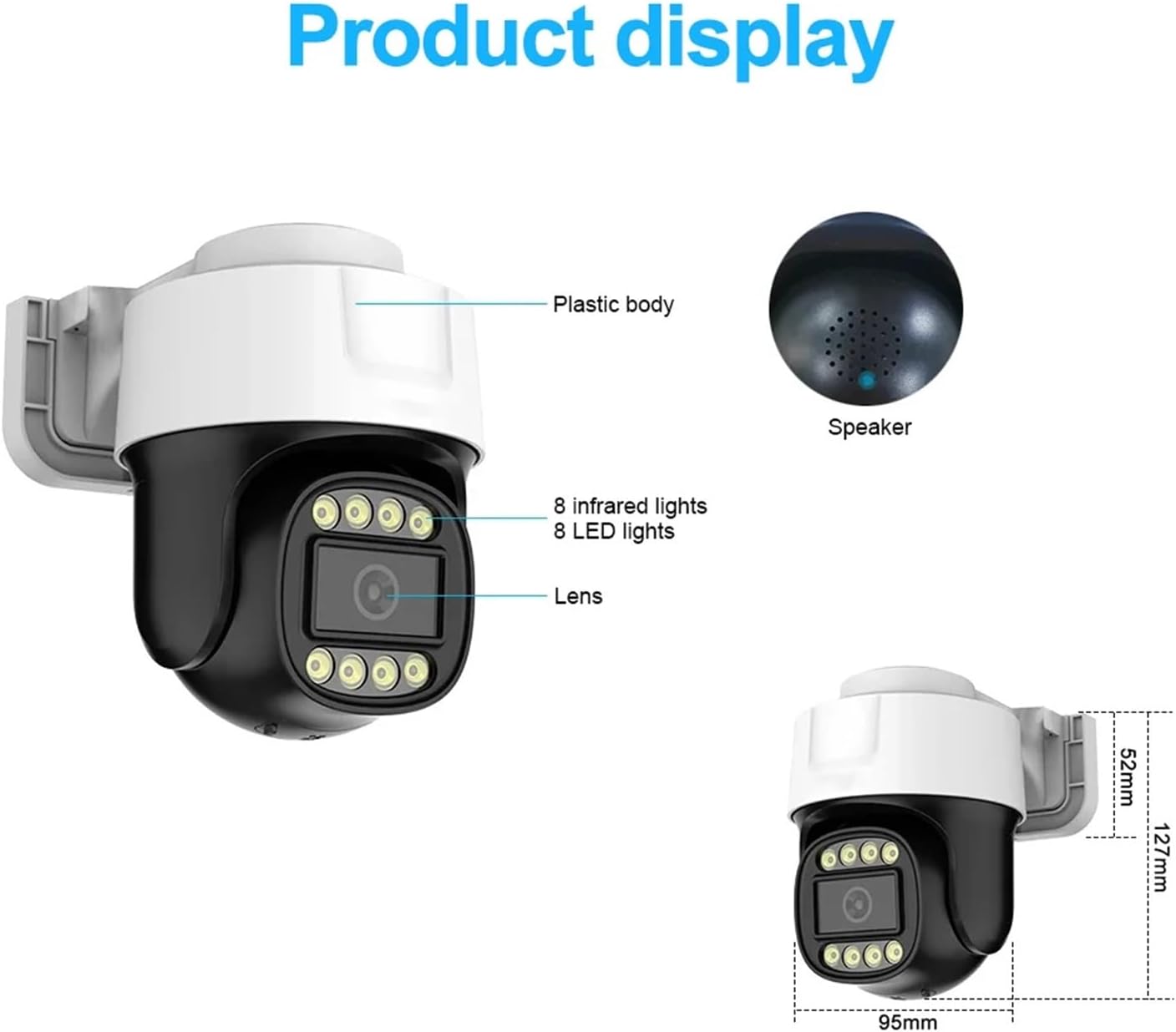

圖4.2： Diagram illustrating the camera's components (plastic body, speaker, lens, infrared lights, LED lights) and dimensions (127mm height, 95mm width).

主要特點：

• 2MP AHD 高清： Delivers clear and detailed 1080P images via coaxial transmission.
• 360°雲台： Offers extensive coverage with 360° horizontal rotation.
• Dual Infrared Night Vision: Equipped with 2 infrared LED lights for clear surveillance in dark conditions.
• Coaxial Control (UTC): Allows PTZ operation and menu access directly through a compatible DVR via the coaxial cable.
• 內建麥克風： Supports coaxial audio for synchronized sound recording.
• IP66 防風雨： Durable housing suitable for both indoor and outdoor use, resistant to dust and water.

5. 設定

5.1 安裝相機

1. 選擇合適的安裝位置，以提供所需的照射範圍。 view and is within reach of power and coaxial cables.
2. Use the provided mounting template (if applicable) or mark the drill holes on the wall or ceiling.
3. 必要時鑽孔並插入牆塞。
4. Securely attach the camera bracket to the mounting surface using the screws.
5. Adjust the camera's angle as needed after wiring.

5.2 接線連接

The camera uses a BNC connector for video and coaxial control, and a DC power input.

圖5.1： Connection diagram for UTC Coaxial PTZ Control. Connect the camera's BNC output to the AHD DVR's BNC input. Ensure the DVR supports PTZ Coaxial Control. Connect the camera to a power source.

圖5.2： Connection diagram for TVI Coaxial Audio. The camera's built-in microphone transmits audio over the same coaxial cable as video. Connect the camera's BNC output to a DVR that supports coaxial audio functionality to obtain video with sound.

• Connect the BNC cable from the camera to a compatible AHD DVR's video input.
• Connect the power adapter to the camera's DC input and then plug it into a power outlet.
• 在開啟系統電源之前確保所有連接都牢固。

6. 操作說明

6.1 雲台控制

The camera supports PTZ (Pan, Tilt, Zoom) control via the coaxial cable (UTC Coaxial Control). This functionality requires a compatible DVR that supports UTC.

• Access the PTZ control interface on your DVR.
• Use the directional controls to pan (left/right) and tilt (up/down) the camera.
• If supported by your DVR and camera, use the zoom controls to adjust the optical zoom.
• The coaxial menu can also be accessed through the DVR's PTZ control interface for advanced settings.

6.2 夜視模式

The camera offers different night vision modes to adapt to varying light conditions.

圖6.1： Illustration of different night vision modes. Top: Infrared night vision (black and white). Middle: Full color night vision (color image with white light). Bottom: Alarm message sent automatically upon detection.

• 紅外夜視： In low-light or dark conditions, the camera automatically activates its infrared LEDs, providing a clear black-and-white image.
• 全彩夜視： The camera can utilize its built-in white LED lights to provide a full-color image even in darkness. This mode may be activated automatically or manually via the DVR's settings.
• 智能夜視： Some DVRs may offer smart modes that switch between infrared and full-color based on detected motion or specific settings.

6.3 Coaxial Audio

The integrated microphone allows the camera to capture audio, which is transmitted over the same coaxial cable as the video signal. Ensure your DVR supports coaxial audio input to record and playback audio.

6.4 Weatherproof Features

The camera is rated IP66, indicating its resistance to dust and water ingress. This makes it suitable for various outdoor environments.

圖6.2： Visual representation of the camera's IP66 weatherproof capabilities, including resistance to water, sun, cold, and dust.

7、維護保養

7.1 清潔

• Regularly clean the camera lens with a soft, lint-free cloth to ensure clear image quality.
• For stubborn dirt, use a lens cleaning solution specifically designed for optical surfaces.
• 用廣告擦拭相機機身amp 布。避免使用研磨性清潔劑或溶劑。

7.2 環境考慮

• While IP66 rated, avoid direct exposure to high-pressure water jets.
• 如果安裝在封閉空間內，請確保通風良好，以防止過熱。

8。 故障排除

如果您在使用相機時遇到問題，請參考以下常見問題及解決方法：

• DVR上沒有影像：
  • Check power connection to the camera.
  • Verify BNC cable connection between camera and DVR.
  • 請確保正確選擇了DVR輸入通道。
  • Confirm the camera's video format (AHD, TVI, CVI, CVBS) is compatible with the DVR input.
• PTZ控制無反應：
  • Ensure your DVR supports UTC (Up The Coax) PTZ control.
  • Check the coaxial cable for damage.
  • Verify PTZ settings on the DVR are correctly configured for the camera.
• 夜視能力差：
  • 確保相機鏡頭清潔。
  • Check for obstructions blocking the infrared or white LED lights.
  • Verify night vision mode settings on the DVR.
• 無音訊：
  • Confirm your DVR supports coaxial audio input.
  • Check audio settings on the DVR.
  • 確保攝影機的麥克風沒有被遮住。

如果嘗試這些步驟後問題仍然存在，請聯絡客戶支援。

9. 規格

10. 保固和支持

有關保固資訊和技術支持，請參閱購買時隨附的文件或聯絡您的零售商。請保留您的購買憑證以用於保固索賠。
