介紹
This manual provides essential information for the assembly, operation, maintenance, and troubleshooting of your vidaXL Garden Black Steel Planter Box. Please read these instructions carefully before assembly and use to ensure proper function and longevity of the product. Retain this manual for future reference.
The vidaXL Garden Black Steel Planter Box is designed for outdoor gardening, offering a modern aesthetic and practical features for cultivating flowers, herbs, and vegetables. Its robust steel construction and integrated watering system are intended to provide a reliable gardening experience.

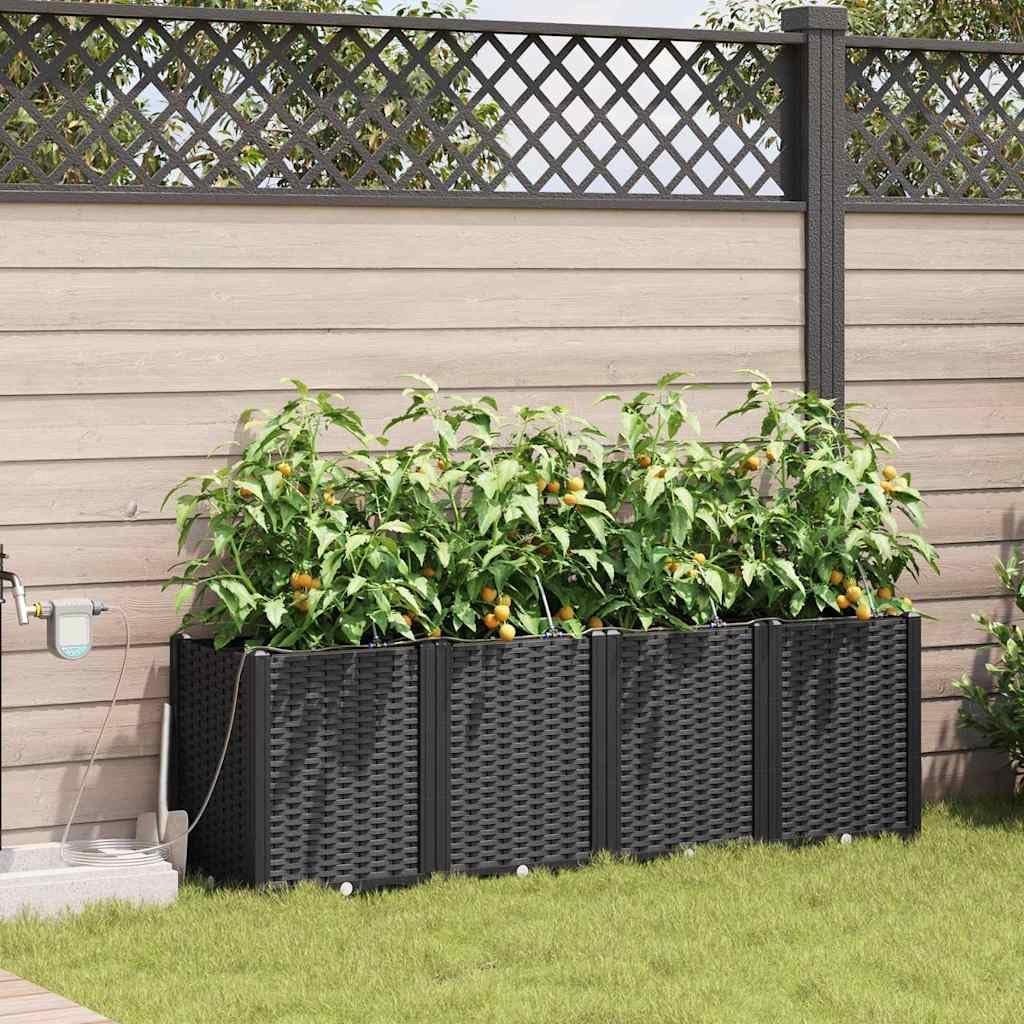

Image: The vidaXL Garden Black Steel Planter Box, 160 x 40 x 52 cm, shown in a garden environment, filled with thriving plants. The integrated irrigation system is visible.
安裝和組裝
Assembly of the planter box is required. Follow these general steps for proper setup:
- 拆開組件包裝： Carefully remove all parts from the packaging. Verify that all components listed in the packing list (not provided in this manual, refer to product packaging) are present and undamaged.
- Assemble Planter Sections: Connect the individual steel panels to form the planter box structure. Ensure all connections are secure. The design allows for modular assembly.
- Install Base and Feet: Attach the base panels and feet to the bottom of the planter box. Ensure the feet are stable and level.
- Integrate Irrigation System: Connect the components of the built-in irrigation system. This typically involves attaching the water lines and drippers to the internal structure and connecting the main water supply line to the external timer/controller.
- 定位： Place the assembled planter box on a flat, stable surface in your desired outdoor location. Consider sunlight exposure and proximity to a water source for the irrigation system.

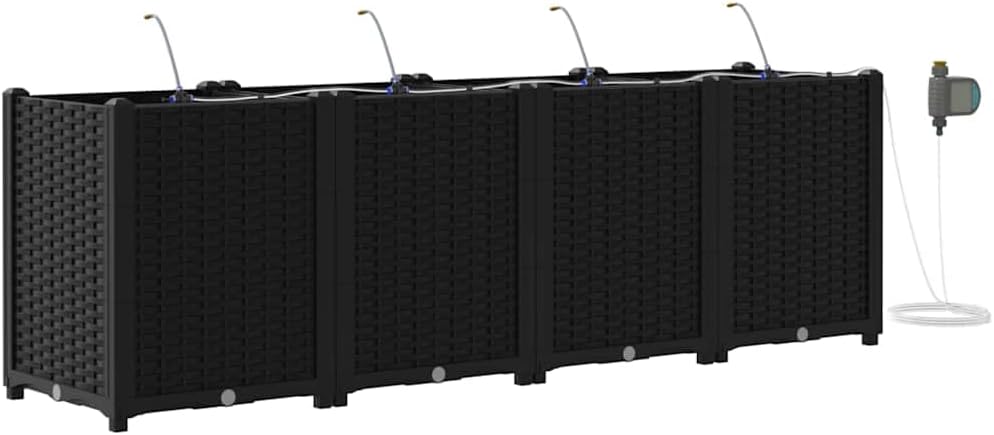

圖片：頭頂上方 view of the vidaXL Garden Black Steel Planter Box, illustrating the modular sections and the layout of the integrated irrigation system with its external timer.
Operating the Irrigation System
The planter box features a built-in irrigation system designed for efficient watering. Follow these steps to operate it:
- 連接水源： Attach the main water supply line from the irrigation system to an outdoor faucet or hose connection.
- Set Timer/Controller: Use the external timer/controller to program your watering schedule. Refer to the specific instructions provided with the timer for detailed programming steps. Adjust frequency and duration based on plant needs and local climate.
- Monitor Water Flow: After initial setup, observe the drippers to ensure even water distribution to your plants. Adjust dripper positions if necessary to optimize coverage.
- Adjust for Plant Needs: Different plants have varying water requirements. Monitor your plants for signs of over or under-watering and adjust the irrigation schedule accordingly.
圖片：一幅拼貼畫，展示了細節 views of the irrigation system components, including a dripper nozzle, the digital water timer, and the textured surface of the planter box.
維護
Regular maintenance will help preserve the appearance and functionality of your planter box:
- 打掃： Wipe the planter box with a clean, damp cloth to remove dust, dirt, and debris. Avoid abrasive cleaners that could damage the steel finish.
- 紫外線防護： While the steel is UV-resistant, prolonged exposure to intense direct sunlight can still affect its longevity. Consider partial shade or protective covers during extreme weather conditions if possible.
- 檢查連接： Periodically inspect all connections, especially if the planter is moved or disassembled. Ensure all parts are securely fastened.
- Irrigation System Check: Regularly inspect the irrigation lines and drippers for clogs or leaks. Clean drippers as needed to maintain optimal water flow.
- 防寒： In colder climates, consider draining the irrigation system and storing the timer indoors to prevent freezing damage.
故障排除
以下是一些常見問題及可能的解決方案：
| 問題 | 可能的原因 | 解決方案 |
|---|---|---|
| Uneven Water Distribution | Clogged drippers, incorrect dripper placement. | Clean drippers, adjust their position to ensure even coverage for all plants. |
| 漏水 | Loose connections in the irrigation system. | Tighten all hose and dripper connections. Inspect lines for cracks or damage. |
| 定時器不工作 | Dead batteries, incorrect programming. | Replace batteries. Refer to the timer's specific manual for reprogramming instructions. |
| Planter Appears Unstable | Uneven ground, loose assembly. | Ensure the planter is on a level surface. Re-tighten all assembly bolts and connections. |
規格
- 模型： 42002857
- 顏色： 黑色的
- 材料： 鋼
- 整體尺寸（長x寬x高）： 160 x 40 x 52 厘米（63.0 x 15.7 x 20.5 英寸）
- 物品重量： 約11.5公斤（25.4磅）
- 組裝要求： 是的
- 特徵： UV Resistant Construction, Built-in Irrigation System
Image: A technical diagram illustrating the key dimensions of the planter box, including length (160 cm / 63 inches), width (40 cm / 15.7 inches), and height (52 cm / 20.9 inches), along with irrigation system details.
保固和支持
For specific warranty information regarding your vidaXL Garden Black Steel Planter Box, please refer to the documentation included with your purchase or contact vidaXL customer service directly. Warranty terms typically cover manufacturing defects for a specified period.
If you encounter issues not covered in this troubleshooting section or require further assistance, please contact vidaXL customer support through their official website or the retailer from whom the product was purchased. Please have your model number (42002857) and purchase details ready when contacting support.
