VINGLI Home Office Desk Chair Instruction Manual

一、簡介

This manual provides instructions for the assembly, operation, and maintenance of your VINGLI Home Office Desk Chair. Please read these instructions carefully before use and retain them for future reference. This chair is designed for home office, study, makeup area, and similar indoor environments.

重要安全資訊：

• 最大承重：330.7磅（150公斤）。請勿超過此限制。
• 使用前確保所有組件已牢固固定。
• 調整過程中，請勿讓手腳接觸運轉部件。

Image 1.1: The VINGLI Home Office Desk Chair, featuring a green upholstered seat and backrest, gold metal armrests, and a gold five-star base with casters. The chair is positioned on a rug in a home office setting.

2. 包裝內容

Before beginning assembly, verify that all parts are present and undamaged. If any parts are missing or damaged, please contact VINGLI customer support.

• 座墊
• 靠背
• 扶手 (2)
• 氣舉油缸
• 基礎（5星）
• 腳輪 (5)
• Feet Pegs (5, optional replacement for casters)
• 五金配件包（螺絲、墊圈、內六角扳手）

3. 設定和組裝

Assembly of the VINGLI Home Office Desk Chair is designed to be straightforward and requires minimal effort. Follow these steps carefully.

1. Attach Casters/Feet Pegs to Base: Insert the five casters or feet pegs firmly into the holes at the end of each leg of the chair base. Ensure they are fully seated.
2. 插入式氣壓桿： 將氣舉缸放入組裝好的底座的中心孔中。
3. 將扶手安裝到座椅上： Secure the armrests to the underside of the seat cushion using the provided screws. Ensure the armrests are oriented correctly.
4. 將靠背安裝到座椅上： Connect the backrest to the seat cushion assembly. Fasten securely with the appropriate screws.
5. 將座椅組件連接到氣壓升降裝置： Carefully place the assembled seat and backrest onto the gas lift cylinder, ensuring the center mechanism aligns with the top of the gas lift. Apply downward pressure to secure.
6. 最終檢查： Verify that all screws are tightened and all components are stable before using the chair.

圖 3.1：詳細 view of the chair's gold metal armrest and the green upholstered seat, highlighting the connection points for assembly.

4. 操作說明

Your VINGLI Home Office Desk Chair offers several adjustable features for personalized comfort.

4.1 高度調節

To adjust the chair's height, locate the lever beneath the seat on the right side. While seated, pull the lever upwards to lower the chair. To raise the chair, stand up and pull the lever upwards. Release the lever at the desired height to lock it in place.

4.2 傾斜功能

The chair features a tilt-back mechanism for relaxation. To activate the tilt, pull the lever on the left side of the chair outwards. To lock the chair in an upright position, push the lever inwards. The tension of the tilt can often be adjusted by rotating a knob located under the seat, typically at the front.

4.3 360°旋轉和移動性

The chair is equipped with a 360-degree silent swivel function, allowing for easy rotation without noise. The five high-quality ball casters provide smooth mobility across various floor surfaces. For stationary use, the casters can be replaced with the included feet pegs.

4.4 Removable Armrests

The armrests are designed to be removable. If you prefer to use the chair without armrests, they can be detached by unscrewing them from the seat base. This provides flexibility for different user preferences or to fit under desks with limited clearance.

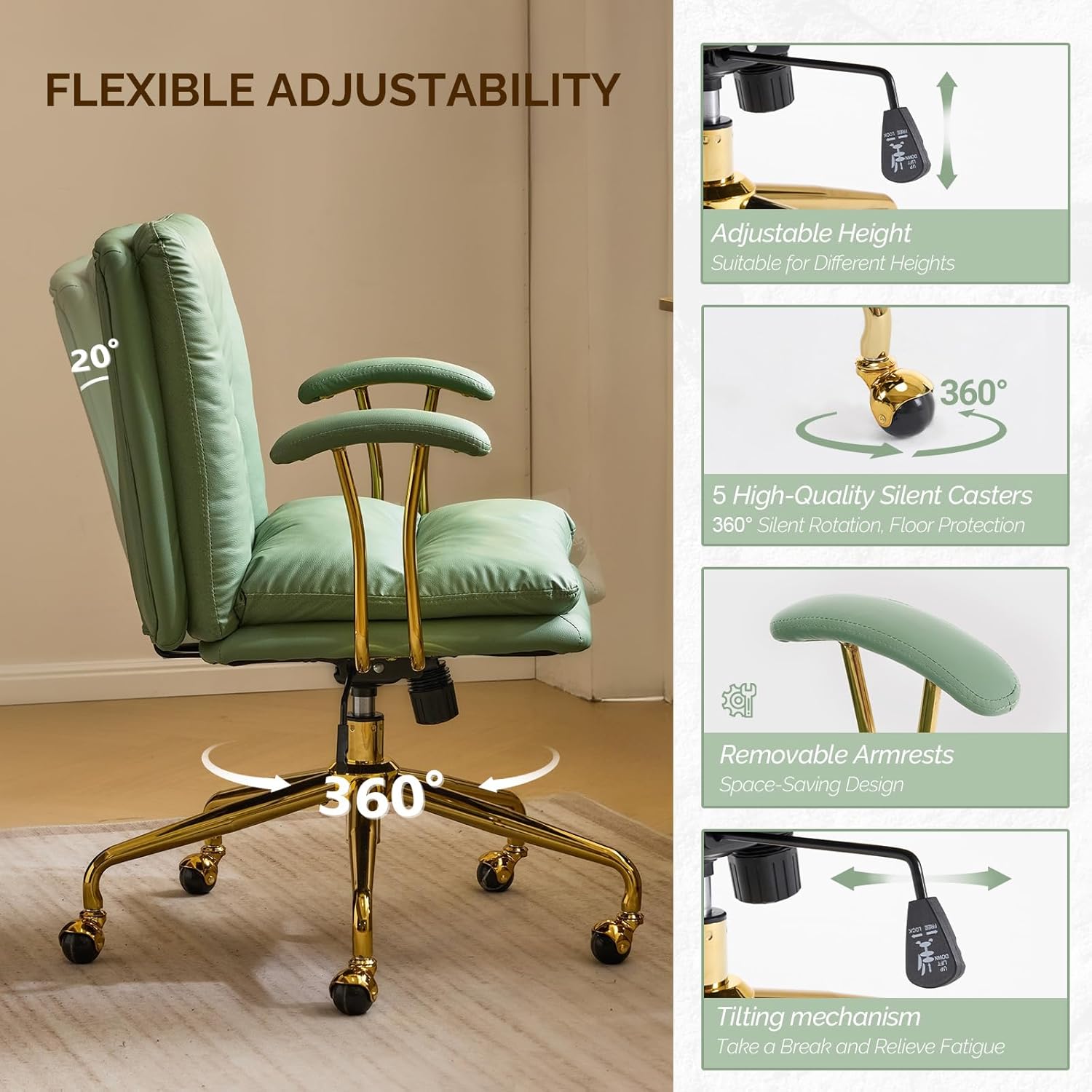

Image 4.1: An illustration detailing the chair's adjustable height, 360-degree swivel, removable armrests, and tilting function for user customization.

5、維護保養

Proper maintenance will extend the life and appearance of your VINGLI Home Office Desk Chair.

• 打掃： For PU leather or cat scratch-resistant PU surfaces, wipe with a soft, damp cloth. For microfiber (suede) surfaces, use a dry brush or a specialized fabric cleaner. Avoid harsh chemicals or abrasive cleaners.
• 硬體檢查： 定期檢查所有螺絲和螺栓，確保它們都已擰緊。如有必要，請重新擰緊以保持穩定性。
• 腳輪保養： Keep casters free of hair and debris to ensure smooth rolling. Clean them regularly.
• 避免過載： 請勿超過最大承重 330.7 磅（150 公斤）。
• 陽光照射： 避免長時間陽光直射，以防止褪色和材料老化。

6。 故障排除

本節介紹您在使用椅子時可能遇到的常見問題。

• 椅子感覺不穩或搖晃：
  • 確保所有組裝螺絲都已牢固擰緊。
  • 檢查氣壓桿是否正確安裝在底座和座椅機構。
  • Check if the floor surface is even.
• 椅子高度不可調整：
  • Ensure the height adjustment lever is fully engaged when pulled.
  • Check if the gas lift cylinder is damaged or stuck. If so, contact support.
• Chair leans to one side:
  • Re-check all connections, especially where the seat attaches to the mechanism and the backrest to the seat. Uneven tightening can cause leaning.
  • Ensure the base is not bent or damaged.
• 腳輪滾動不順暢：
  • 清除腳輪上的所有碎屑（毛髮、絨毛）。
  • Ensure casters are fully inserted into the base.

7. 規格

Detailed specifications for the VINGLI Home Office Desk Chair.

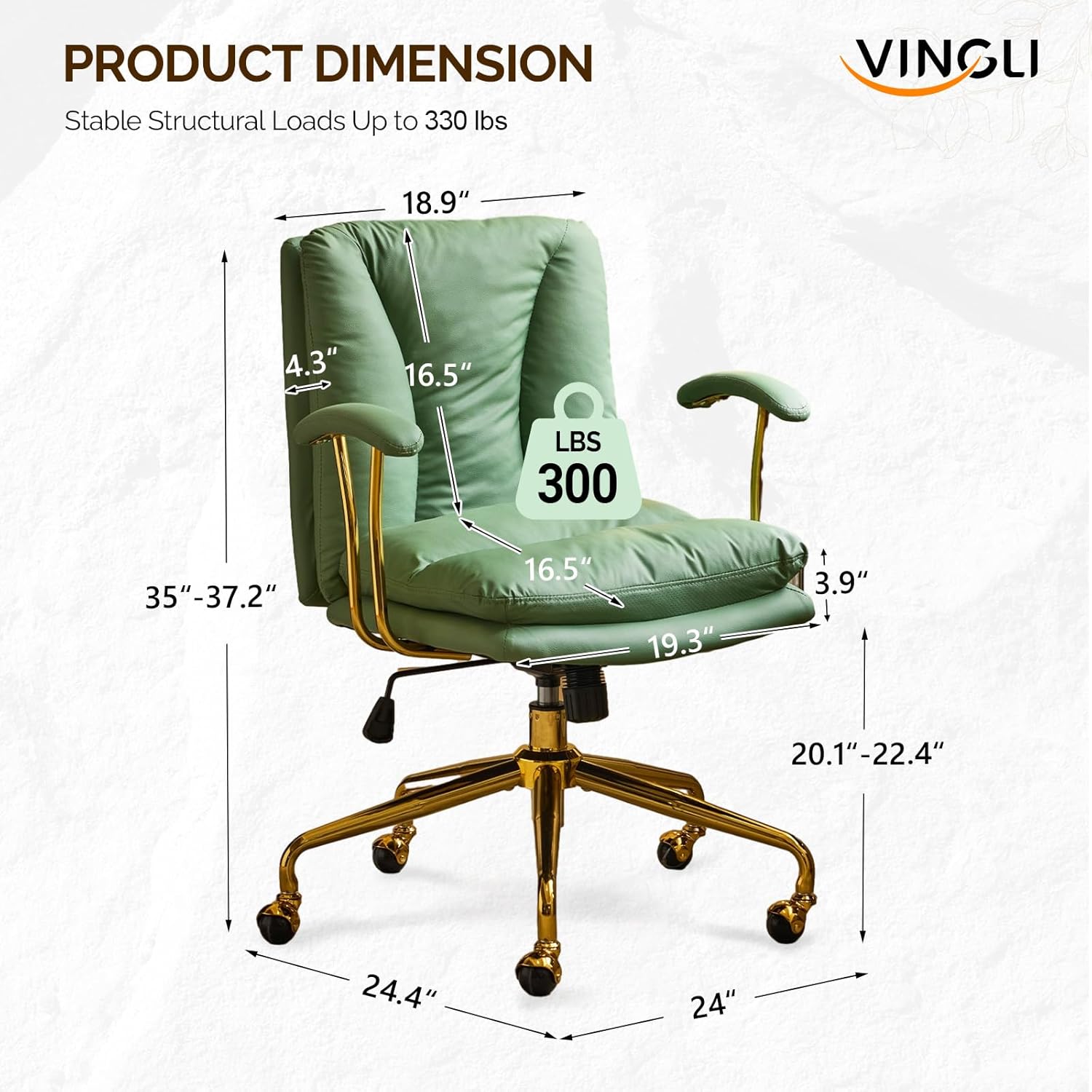

Image 7.1: A visual representation of the chair's key dimensions, including height, width, depth, and seat measurements.

8. 保固信息

Specific warranty details for the VINGLI Home Office Desk Chair are not provided in this manual. Please refer to the product packaging or the retailer's website for information regarding warranty coverage and terms. Retain your proof of purchase for any warranty claims.

9. 客戶支持

If you have any questions, require assistance with assembly, or encounter issues not covered in the troubleshooting section, please contact VINGLI customer support. Contact information can typically be found on the product packaging, the retailer's website, or the VINGLI official web地點。

如有任何疑問，您可以訪問 VINGLI 亞馬遜商店.
