RDINSCOS MT75 無針水分計

介紹

The RDINSCOS MT75 Pinless Moisture Meter is a versatile, non-invasive digital damp detector designed for accurate moisture measurement in a variety of building materials and wood. Its advanced dielectric sensor allows for detection up to 40mm (1.57 inches) beneath surfaces without causing damage, making it an ideal tool for homeowners, woodworkers, and professional inspectors.

This manual provides comprehensive instructions for the proper setup, operation, maintenance, and troubleshooting of your MT75 moisture meter to ensure reliable and consistent performance.

產品結束view

The MT75 features a large, backlit LCD for clear readings, multiple measurement modes, a REF (Reference) mode for comparative analysis, and an auto shut-off function to conserve battery life. Its robust ABS construction ensures durability for daily use.

The RDINSCOS MT75 Pinless Moisture Meter, a non-invasive digital damp detector, shown with its included USB cable for charging or data transfer.

主要特點

• Versatile Multi-Surface Detection: Works on wood, drywall, concrete, plaster, and more.
• Non-Invasive Pinless Design: Detects moisture up to 40mm (1.57 inches) deep without surface damage.
• High Accuracy: Provides readings with 2.5% accuracy.
• Reference (REF) Mode: Allows comparison of current moisture levels to a baseline.
• Easy-to-Read Backlit LCD: Clear display of 0 to 100 relative moisture values.
• Hold Function: Freezes readings on-screen for convenient recording.
• Auto Shut-Off: Conserves battery by turning off when not in use.
• Durable Construction: Built for professional and DIY use.

設定

電池安裝

The MT75 requires one 9V battery (included). To install, open the battery compartment cover on the back of the device, insert the 9V battery, ensuring correct polarity, and then close the cover securely.

初始校準

Before each use, it is recommended to calibrate the meter. Press the MEAS button to perform a quick calibration. This ensures optimal accuracy for your measurements.

This image illustrates the proper way to hold the RDINSCOS MT75 moisture meter for accurate readings, contrasting it with an incorrect grip. It also outlines the basic steps for operation: power on, calibrate, and select measurement mode.

操作說明

電源開/關

按 力量 button (⑂) to turn the device on. The meter will automatically shut off after a period of inactivity to save battery.

模式選擇

The MT75 offers five distinct measurement modes for different material types. Press the 模式 button to cycle through these options. Select the mode appropriate for the material you are testing to ensure accurate readings.

A user's hand demonstrates pressing the 'MODE' button on the RDINSCOS MT75, which allows selection from five different measurement modes tailored for various materials.

Reference (REF) Mode

The REF mode allows you to establish a baseline moisture level from a known dry area and then compare subsequent readings to this reference. This is particularly useful for identifying abnormal dampness in specific areas.

1. Locate a dry spot on the material you wish to test.
2. Place the meter on this dry spot and press the 參考文獻 button to set this as your reference point.
3. Move the meter to other areas of the material. The display will show the current moisture level relative to your set reference.

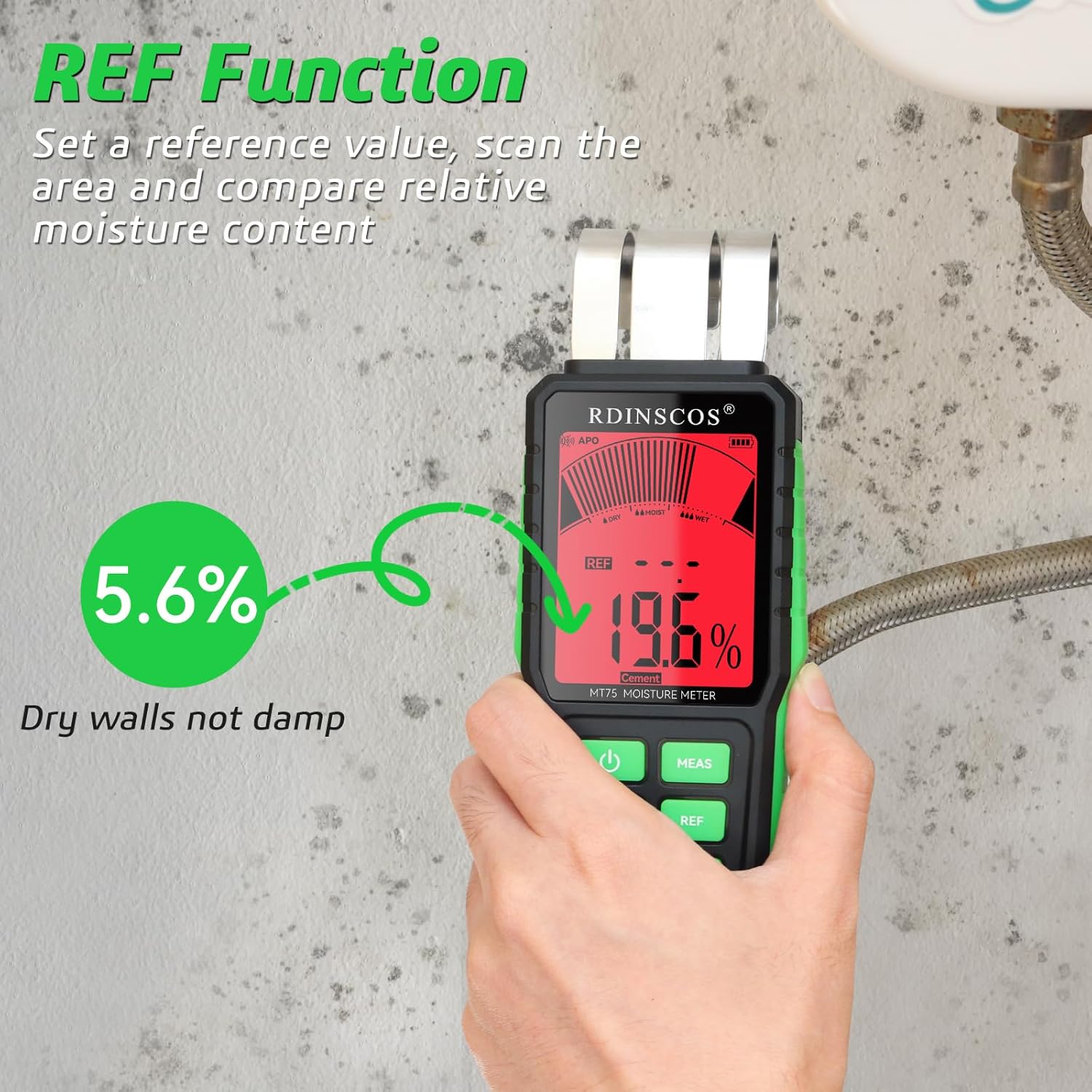

This image illustrates the REF (Reference) function of the MT75 meter. It shows how to establish a baseline reading on a dry area (5.6%) and then compare it to a potentially damp area (19.6%) to identify moisture issues.

保持功能

按 抓住 button to freeze the current reading on the display. This is useful for taking measurements in hard-to-reach areas where direct viewing of the screen is difficult. Press 抓住 再次發布閱讀內容。

測量深度

The MT75 can detect moisture up to a depth of 40mm (1.57 inches) from the surface. This allows for comprehensive assessment of moisture content within materials without needing to penetrate them.

The RDINSCOS MT75 moisture meter in action, demonstrating its non-destructive, pinless measurement technology. The image highlights its ability to detect moisture up to 40mm deep within surfaces without causing damage.

正確使用指南

For accurate readings, ensure the sensor pad on the back of the meter is in full contact with the surface being tested. Avoid using the meter near metal objects, electrical wires, or water pipes, as these can interfere with the electromagnetic field used for detection and lead to inaccurate results.

Important usage guidance: This image warns against using the RDINSCOS MT75 moisture meter near metal objects, electrical wires, or water pipes, as these can interfere with accurate moisture detection.

應用領域

The RDINSCOS MT75 is suitable for a wide range of applications, including:

• 木工： Checking moisture content in lumber, flooring, and furniture.
• 房屋檢查： Detecting dampness in walls, ceilings, and floors in basements, bathrooms, and kitchens.
• 建造： Assessing moisture in concrete, plaster, and drywall before painting or finishing.
• 恢復： Monitoring drying progress after water damage.

A visual representation of the RDINSCOS MT75's versatility, showing its effective use across various materials including drywall, ceramic tile, wooden flooring, and concrete.

維護

• 打掃： 用柔軟的乾布擦拭儀表。請勿使用研磨性清潔劑或溶劑。
• 貯存： Store the meter in a cool, dry place away from direct sunlight and extreme temperatures. If storing for extended periods, remove the battery to prevent leakage.
• 電池更換： 當顯示幕上出現低電量指示時，請更換 9V 電池。

故障排除

If you encounter issues with your RDINSCOS MT75 moisture meter, consider the following:

• 設備無法開機： 檢查9V電池是否安裝正確且電量充足。如有必要，請更換電池。
• 讀數不準確： Ensure the sensor pad is in full contact with the surface. Recalibrate the meter by pressing the MEAS button. Avoid measuring near metal or electrical components.
• 顯示暗淡或閃爍： This may indicate a low battery. Replace the 9V battery.

如需更多協助，請參閱保固和支援部分。

規格

保固和支持

The RDINSCOS MT75 Pinless Moisture Meter is backed by a three-year warranty, ensuring long-term reliability and peace of mind. This warranty covers manufacturing defects and ensures the product performs as expected under normal use.

For any questions, technical support, or warranty claims, please contact our customer service team. We are committed to providing friendly support and a replacement guarantee to ensure your satisfaction.

This image signifies the availability of customer support for the RDINSCOS MT75 moisture meter, emphasizing that assistance is available for any inquiries or issues.
