FELYL 60" W x 72" H Framed Single Sliding Shower Door Instruction Manual

1. 引言和主要特點

This manual provides comprehensive instructions for the installation, operation, and maintenance of your FELYL 60" W x 72" H Framed Single Sliding Shower Door. Please read all instructions carefully before beginning installation to ensure proper function and safety.

主要特點：

• 方面： Single Sliding Glass Shower Door of 56 - 61 in. W x 72 in. H. Single door width is 30 1/4", walk-in width is 26 3/4".
• 設計： One fixed door and one sliding door. Sliding door includes a handle, stationary glass includes a matching color towel bar.
• 可調節： Adjustable width between 56" and 61". Features 1/2" per side additional adjustment for non-vertical or uneven walls. Guide rails can be trimmed up to 4" for width adjustment between 60" and 56".
• 可逆安裝： Can be installed for right or left opening.
• 玻璃： 1/4" (6 mm) ultra-clear tempered glass with ANSI and SGCC certification for safety and clarity.
• 硬體: Premium aluminum frame and hardware, rust-resistant. Aluminum bottom door guide for quiet operation. Solid SUS304 stainless steel rollers tested for 100,000 push-and-pull cycles.
• 防水設計： SUS304 bearings, anti-collision strip, anti-jump track, integrated water deflector, and seals to prevent leaks.

2. 安全訊息

安裝和使用過程中，請遵守以下安全注意事項：

• Always wear safety glasses when handling glass.
• Handle glass panels with extreme care. Tempered glass, if broken, shatters into small, blunt pieces.
• Ensure the installation surface is structurally sound and level.
• Use appropriate tools and follow all steps precisely.
• 請勿過度擰緊螺絲，否則可能會損壞零件或玻璃。
• 建議專業安裝。

3. 包裝內容

Verify that all components are present and undamaged before beginning installation. Refer to the parts diagram for identification.

• 固定玻璃板
• 滑動玻璃門
• Top and Bottom Tracks
• 牆臨files
• 門把手
• 毛巾桿
• Rollers and Hardware Kit
• Seals and Water Deflector
• 緊固件和錨固件

4. 所需工具

安裝通常需要以下工具：

• 捲尺
• 鉛筆
• 等級
• 鑽頭
• Drill Bits (appropriate for wall material)
• 螺絲起子（十字頭）
• 填縫槍和矽酮密封膠（防黴）
• 美工刀
• Hacksaw (for trimming tracks if necessary)
• 安全眼鏡

5. 安裝說明

Follow these steps for a successful installation. It is recommended to have two people for certain steps involving heavy glass panels.

5.1. 準備開場白

Measure your shower opening width and height to ensure it falls within the adjustable range of 56" to 61" wide and 72" high. Ensure the shower base and walls are level and plumb.

Figure 1: Product Dimensions and Reversible Installation. The door can be installed for either left or right side opening.

Figure 2: Detailed Configuration Dimensions. This diagram provides specific measurements for various components and access points.

5.2. Install Wall Profiles and Tracks

安裝牆壁專業版files to the shower walls using the provided fasteners. Use a level to ensure they are perfectly vertical. Install the top and bottom tracks, ensuring they are level. If your opening width is less than 60", you may need to trim the top and bottom tracks on the sliding door side only. The cut length should be calculated as: Original track width (60") - Actual opening width.

Figure 3: Width Adjustment. This image shows how to adjust for uneven walls and trim guide rails for a perfect fit.

Figure 4: AAO2 Series Guide Rail Trimming. This diagram details the maximum trimming allowance for different door widths.

5.3. Attach Rollers to Glass Panels

Secure the top and bottom rollers to the respective glass panels. Ensure all screws are tightened properly, but do not overtighten.

Figure 5: Stainless Steel Rollers. This image highlights the durable SUS304 stainless steel rollers for smooth operation.

Figure 6: Roller Comparison. Illustrates the superior quality of S304 Stainless Steel rollers compared to plastic alternatives.

5.4. Hang Glass Panels

Carefully lift and place the fixed glass panel into its designated position within the tracks. Then, hang the sliding door panel onto the top track rollers and guide it into the bottom track. Adjust as needed for smooth movement.

5.5. Install Handles and Towel Bar

Attach the door handle to the sliding door and the towel bar to the fixed panel. Ensure they are securely fastened.

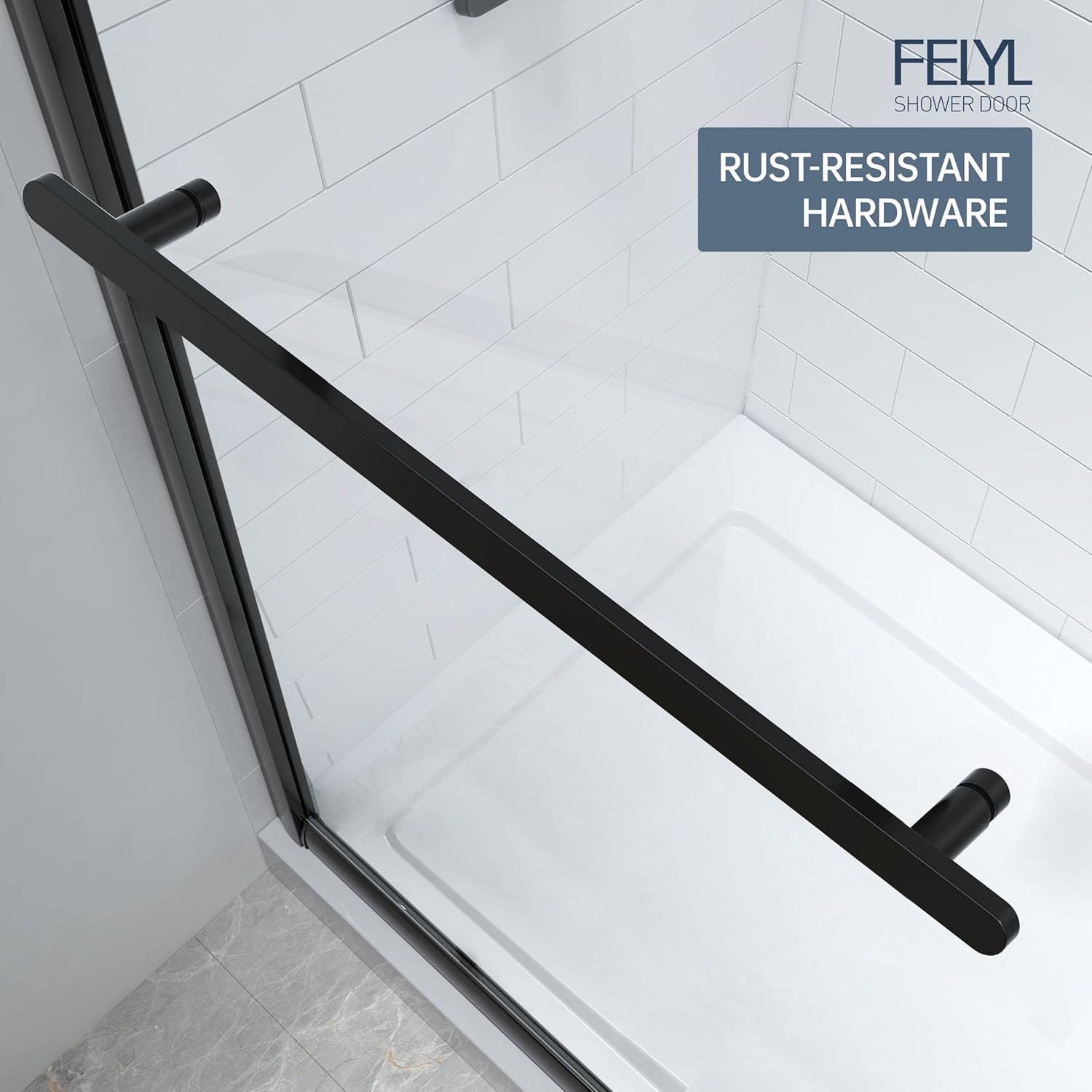

Figure 7: Rust-Resistant Hardware. Showcases the durable matte black finish on the handle and towel bar.

Figure 8: Matte Black Finish. A detailed view of the sleek matte black handle.

5.6. Apply Silicone Sealant

Apply a continuous bead of mildew-resistant silicone sealant along the exterior seams where the wall profiles meet the walls and where the bottom track meets the shower base. Allow 24 hours for the sealant to cure before using the shower.

5.7 安裝影片指南

如需觀看安裝過程的演示視頻，請參考官方安裝視頻：

6. 操作說明

Your FELYL sliding shower door is designed for smooth and effortless operation.

• To open the door, gently grasp the handle and slide the door along the track.
• To close the door, slide it back until it meets the fixed panel and the magnetic strip engages.
• Avoid forcing the door if it encounters resistance. Check for any obstructions in the track.

Door Opening and Closing Demonstration

Watch this short video for a demonstration of the door's smooth opening and closing mechanism:

7、維護保養

定期清潔和保養可確保淋浴門的使用壽命和美觀。

• 玻璃清潔： Clean glass panels regularly with a soft cloth and a non-abrasive glass cleaner. Avoid harsh chemicals or abrasive pads that can scratch the glass or damage coatings.
• 硬體清潔： Wipe down aluminum frames and hardware with a soft, damp 用布擦拭。請勿使用研磨性清潔劑或溶劑，因為這些會損壞表面塗層。
• 軌道維護： Keep the top and bottom tracks free of debris, soap scum, and hair to ensure smooth sliding.
• Quick Release Rollers: The quick-release bottom rollers allow for easy cleaning of the glass edges and tracks. Simply press the release mechanism to detach the bottom of the door for access.

Figure 9: Easy Cleaning Design. Demonstrates how the quick-release rollers facilitate cleaning of the bottom track.

8。 故障排除

若遇到任何問題，請參考以下常見問題及解決方法：

• 門滑動不順暢： Check tracks for debris and clean thoroughly. Ensure rollers are properly aligned and free of obstruction.
• 漏水： Verify that all seals are properly installed and intact. Ensure silicone sealant is applied correctly and has fully cured. Check for any gaps in the wall profiles.
• Door not closing completely: Inspect the magnetic strip for damage or misalignment. Ensure the door is properly aligned within the tracks.

如果問題仍然存在，請聯絡客戶支援。

9. 規格

10. 保固和支持

For warranty information or technical support, please refer to the product packaging or contact FELYL customer service directly. Keep your purchase receipt for warranty claims.
