Outsunny 20 x 33 英尺重型派對帳篷使用說明書

介紹

This manual provides detailed instructions for the assembly, operation, and maintenance of your Outsunny 20 x 33 ft Heavy Duty Party Tent. Designed for various outdoor events, this tent features an upgraded galvanized steel frame for enhanced durability and stability, UV-blocking canopy, and removable sidewalls with windows. Please read this manual thoroughly before setup to ensure safe and correct usage.

安全資訊

警告： 本產品可能使您接觸加州已知會導致癌症、出生缺陷或其他生殖危害的化學物質。欲了解更多信息，請訪問： www.P65Warnings.ca.gov.

• Always ensure the tent is securely anchored to the ground using all provided stakes and guy ropes.
• Do not use the tent in severe weather conditions, including strong winds, heavy rain, or snow. Disassemble and store the tent if adverse weather is expected.
• 使所有火焰和熱源遠離帳篷織物。
• Ensure proper ventilation when using the tent, especially if heat sources are present nearby.
• Assembly requires 4-6 people for safety and ease of installation.
• Measure your site before buying to ensure adequate space for setup.

零件清單

Before beginning assembly, verify that all parts are present and undamaged. Refer to the packing list included with your product for specific quantities. Key components include:

• Galvanized Steel Tubes (38 mm diameter, 0.7 mm thick)
• Galvanized Steel Connectors (42 mm diameter, 1.27 mm thick)
• Top Triangular Brackets
• Extra Side Beams
• Strengthened Base Frame Components
• UV-Blocking Canopy Fabric
• Removable Sidewalls with Church-Style Windows (10 windows)
• Zippered Doors (2 large doors)
• L-shaped Ground Stakes
• 螺旋地釘
• Guy Ropes (4 guylines)
• Bungee Ties

影像： 特寫 view of the heavy-duty galvanized steel frame components, showing the tubes and connectors that form the tent's robust structure.

影像： A detailed diagram illustrating key components such as galvanized steel poles, connectors, stable triangular roof design, L-shaped ground stakes, spiral ground stakes, church-style windows, and large zippered doors.

設定說明

Assembly of this party tent requires a minimum of 4 to 6 people. Choose a flat, level surface for installation, ensuring adequate space for the tent's dimensions (393.75" L x 236.25" W x 126" H).

1. 拆包並分類： Carefully unpack all components and lay them out. Identify and sort all poles, connectors, and fabric sections according to the parts list.
2. 組裝底座框架： Connect the galvanized steel tubes and connectors to form the rectangular base frame of the tent. Ensure all connections are secure.
3. Erect the Vertical Poles: Attach the vertical poles to the base frame. Work systematically around the perimeter, ensuring poles are upright and stable.
4. 安裝屋頂結構： Connect the roof poles and triangular brackets to form the pitched roof structure. This step often requires multiple people to lift and secure the components simultaneously.
5. 搭起天篷： Carefully unfold and drape the UV-blocking canopy fabric over the assembled frame. Align the canopy with the frame, ensuring it covers the entire roof area. Secure the canopy to the frame using the provided bungee ties.
6. 安裝側牆和門： Attach the removable sidewalls and zippered doors to the tent frame. The sidewalls feature church-style windows. Ensure zippers are functional and attachments are secure.
7. 用樁和拉繩固定： Insert the L-shaped ground stakes into the feet of the tent poles for initial stability. For enhanced wind resistance, use the spiral ground stakes combined with the four guy ropes. Anchor these securely into the ground, pulling the ropes taut to provide maximum stability.

影像： Illustration of L-shaped ground stakes inserted into the tent's feet and spiral ground stakes combined with guy ropes for superior wind resistance.

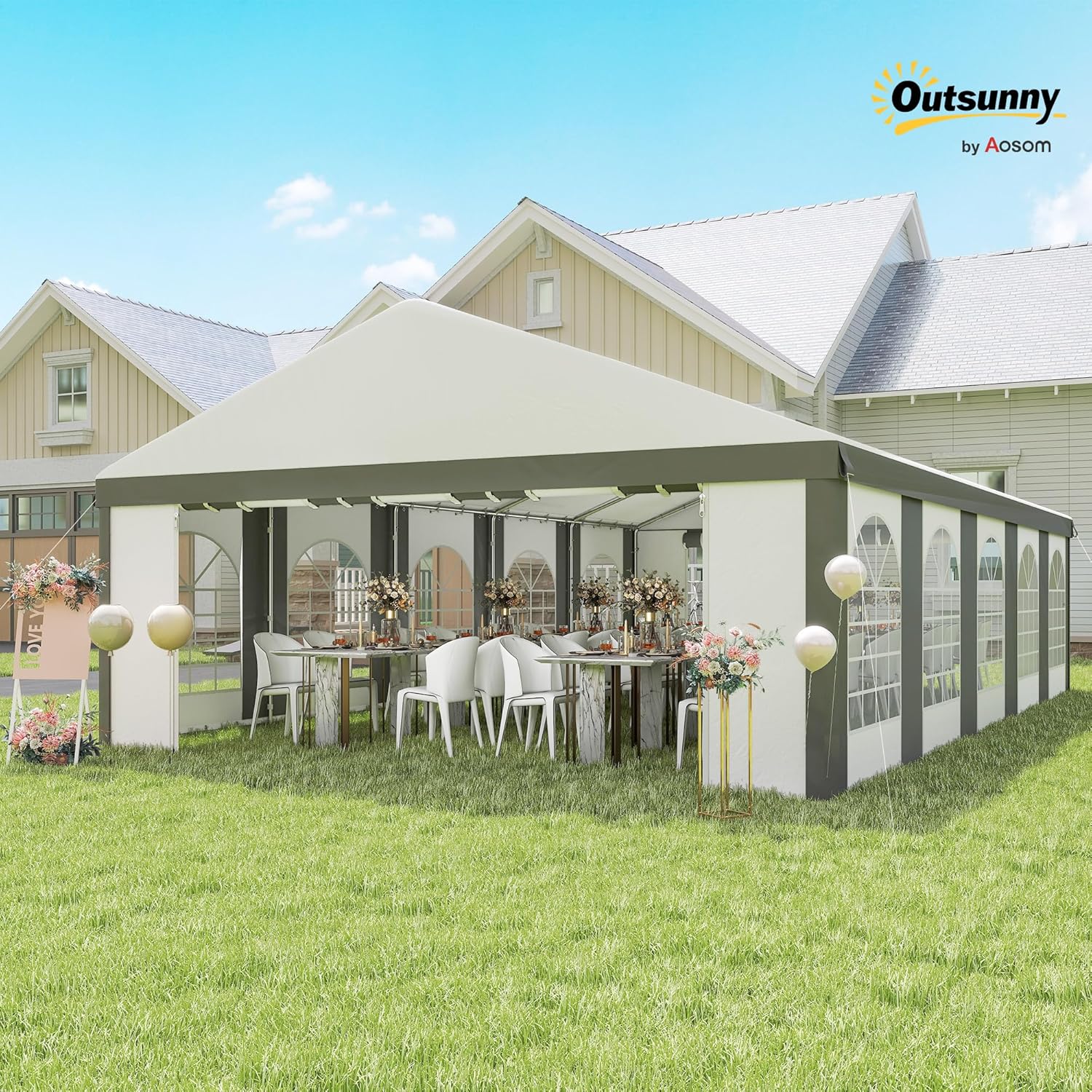

影像： The Outsunny party tent fully assembled in an outdoor setting, demonstrating its large capacity for events.

操作說明

The Outsunny Party Tent is designed for versatile use in various outdoor settings.

• 使用權： Utilize the two large zippered doors for quick entry and exit.
• Ventilation and Light: The ten church-style windows allow natural light to enter and can be opened for ventilation.
• 客製化： Sidewalls are removable, allowing you to transform the tent into an open, breezy gazebo for different event needs or weather conditions.
• 紫外線防護： The canopy fabric is designed to block UV rays, providing shade and controlling sun exposure for occupants.

影像： 內部 view highlighting the church-style windows that provide natural light and the large zippered doors for easy access.

影片: An official product video demonstrating the Outsunny Party Tent's features, including its spacious interior, removable sidewalls, and overall design, showcasing its suitability for various outdoor activities.

維護

• 打掃： Clean the canopy and sidewalls with mild soap and water. Do not use harsh chemicals or abrasive cleaners, as they may damage the fabric. Rinse thoroughly and allow to air dry completely before storage.
• 框架護理： Periodically inspect the galvanized steel frame for any signs of rust or damage. Clean any dirt or debris from the frame.
• 貯存： When not in use, disassemble the tent and store all components in a dry, cool place away from direct sunlight. Ensure fabric is completely dry to prevent mold and mildew.
• 檢查： Regularly check all connections, stakes, and guy ropes for tightness and wear. Replace any worn or damaged parts immediately to maintain the tent's structural integrity.

故障排除

規格

影像： A visual representation of the tent's overall dimensions, including length, width, and height.

保固和支持

For customer support, product inquiries, or assistance with parts, please contact Aosom Direct, the manufacturer of Outsunny products. Information regarding returns and support can typically be found on the retailer's web購買該產品的網站。

• 返回： This product typically offers a 30-day easy return policy. Please refer to your purchase receipt or retailer's policy for specific terms.
• 保護計劃： 您或許可以購買延保計畫。請向零售商諮詢是否有2年或3年延保計畫等選項。

For further assistance, visit the official Outsunny store or contact their customer service directly.
