DWVO 36 Inch Bathroom Vanity with Sink Instruction Manual

一、簡介

This instruction manual provides comprehensive guidance for the assembly, installation, operation, and maintenance of your DWVO 36 Inch Bathroom Vanity with Sink. Please read this manual thoroughly before beginning installation to ensure proper setup and safe use. Retain this manual for future reference.

2. 產品結束view

The DWVO 36 Inch Bathroom Vanity is designed for modern bathrooms, offering both aesthetic appeal and practical functionality. It features a black cabinet, a white sintered stone countertop with an integrated ceramic sink, and gold-finished metal legs.

主要特點：

• 多功能儲存： The cabinet body includes both hidden and open storage compartments with internal partitions, designed to prevent dust accumulation and organize items efficiently.
• High-Quality Sintered Stone Countertop: The countertop is crafted from durable sintered stone, known for its breathability, resistance to water accumulation, and ease of cleaning.
• 一體成型陶瓷水槽： A smooth, easy-to-clean ceramic sink is seamlessly integrated into the countertop.
• 軟關閉抽屜： Equipped with four drawers featuring a soft-close system for quiet and smooth operation.
• Stable Metal Legs: Four stainless steel metal legs provide stable support and elevate the cabinet, creating a moisture-proof space between the vanity and the floor.
• 耐用的結構： Made with multi-layer solid wood panels and a water-resistant veneer, ensuring strong load capacity.

正面 view of the DWVO 36-inch bathroom vanity, showcasing the black cabinet, white sintered stone countertop, integrated sink, and gold-finished metal legs.

Illustration highlighting key product features including multi-layer solid wood panel construction, water-resistant veneer, strong load capacity, and four drawers.

詳細的 views of the easy-clean one-piece ceramic sink, ample interior storage space within the drawers, and the durable stainless steel legs.

3. 規格

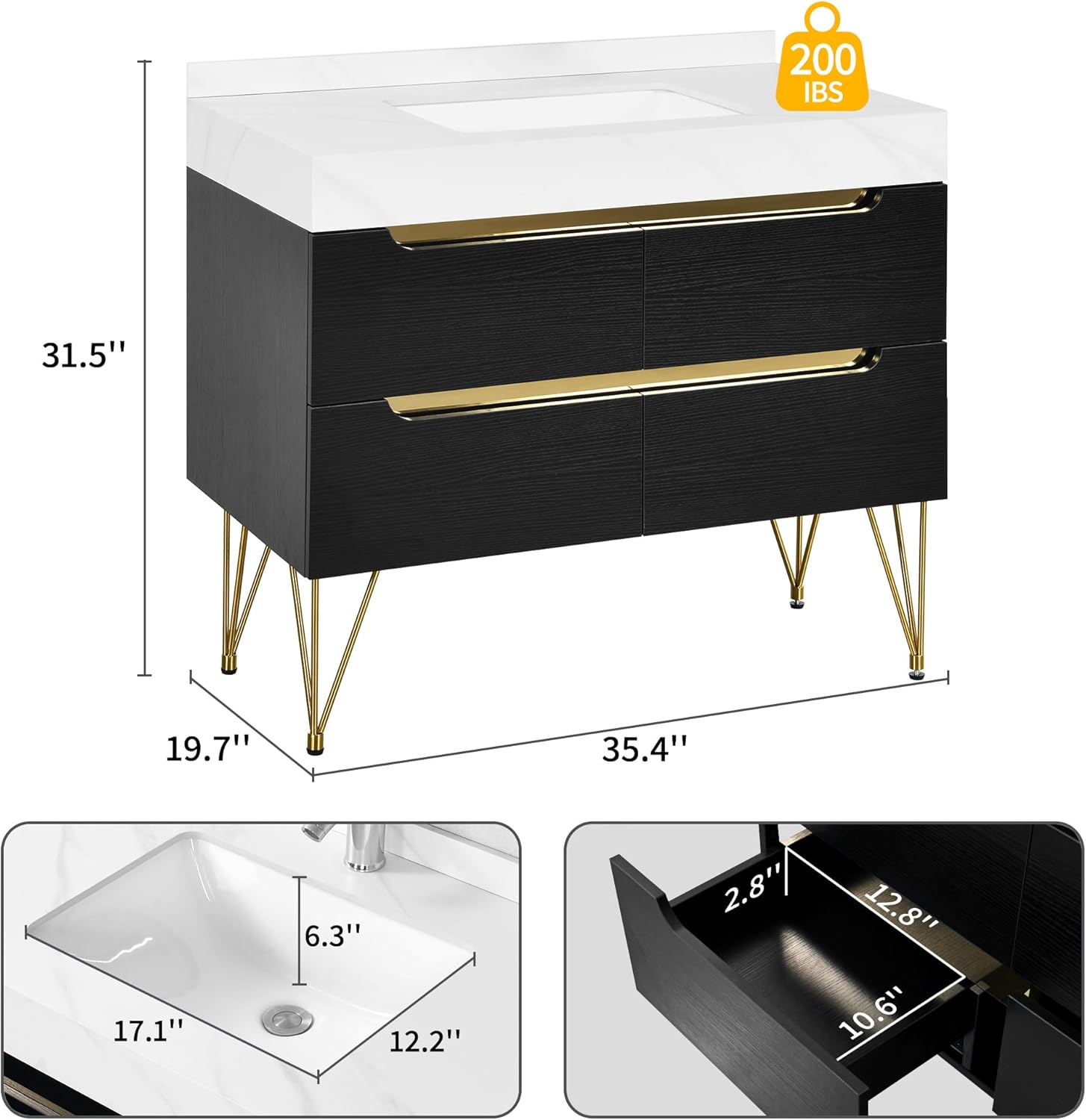

Detailed diagram illustrating the dimensions of the DWVO 36-inch bathroom vanity, including overall height (31.5"), width (35.4"), depth (19.7"), sink basin measurements (17.1" x 12.2" x 6.3"), and drawer interior dimensions (12.8" x 10.6" x 2.8"). Also indicates a weight capacity of 200 lbs.

4. 安全訊息

警告：不遵守這些安全說明可能會導致人身傷害或產品損壞。

• 請務必仔細遵循組裝說明。
• Use appropriate safety gear, such as gloves and eye protection, when handling sharp or heavy components.
• Ensure the metal legs are securely attached to the cabinet body to prevent tipping or instability.
• Keep the area around the vanity clear of obstructions during assembly and installation to prevent potential hazards.
• Do not exceed the maximum weight limit of 200 pounds on the vanity.
• Exercise caution when connecting plumbing to avoid leaks or damage.

5. 設定與安裝

The DWVO 36 Inch Bathroom Vanity is designed for straightforward assembly. The unit is shipped in two main parts: the pre-assembled cabinet and the countertop with integrated sink. All essential hardware for assembly is included.

5.1 開箱檢查

1. Carefully unpack all components and verify against the parts list (not provided in source, but implied).
2. Inspect all parts for any damage. Do not proceed with assembly if any components are damaged. Contact customer support immediately.
3. Ensure you have all necessary tools (e.g., screwdriver, wrench, level) before starting.

5.2 Attaching the Metal Legs

1. Gently place the cabinet body upside down on a soft, protected surface to prevent scratches.
2. Attach the four stainless steel metal legs to the designated mounting points on the bottom of the cabinet using the provided hardware.
3. Ensure all leg connections are tightened securely. The legs feature adjustable feet for leveling the vanity on uneven floors.

5.3 Placing the Countertop

1. With the cabinet upright and leveled, carefully place the sintered stone countertop with the integrated sink onto the top of the cabinet.
2. Align the countertop precisely with the cabinet edges. The countertop is designed to rest securely on the cabinet. For added stability, it is recommended to apply a bead of silicone sealant (not included) along the contact points between the countertop and the cabinet, and between the countertop and the wall, after final positioning.

5.4 管道連接

• Connect the drain assembly to the integrated ceramic sink.
• Connect the water supply lines to your faucet (faucet not included) and then to the main water supply.
• The vanity's design may require careful routing of plumbing. Access to plumbing connections is typically achieved by removing the drawers. To remove drawers, locate and disengage the release mechanisms on the drawer slides (consult specific drawer slide instructions if available).
• Ensure all plumbing connections are watertight to prevent leaks. It is advisable to have a qualified plumber perform these connections if you are not experienced.

6. 操作說明

The DWVO Bathroom Vanity is designed for daily use in a bathroom environment.

• 抽屜： The four drawers feature a soft-close mechanism. To open, gently pull the handle. To close, push the drawer until the soft-close mechanism engages, allowing it to close quietly and smoothly. Avoid forcing the drawers.
• 貯存： Utilize the hidden and open storage compartments for organizing bathroom essentials. The internal partitions can help keep items tidy.
• 檯面： The sintered stone countertop provides a durable surface for daily use. Avoid placing extremely hot items directly on the surface without protection.

Image demonstrating the functional aspects of the DWVO 36-inch bathroom vanity, with callouts for placing items on the platform, drawer storage, and utilization of space below the vanity.

7、維護保養

Regular maintenance will help preserve the appearance and functionality of your DWVO Bathroom Vanity.

• 檯面清潔： The sintered stone countertop is easy to clean. Wipe spills immediately with a soft, damp cloth. For general cleaning, use a mild, non-abrasive cleaner and a soft cloth. Avoid harsh chemicals, abrasive pads, or acidic cleaners, which can damage the surface.
• 櫥櫃保養： 用柔軟的刷子清潔櫥櫃表面。amp cloth and a mild soap solution. Dry immediately with a clean cloth. Avoid excessive moisture.
• 抽屜滑軌： Periodically check drawer slides for smooth operation. If necessary, clean any dust or debris from the tracks.
• 腿： Wipe the stainless steel legs with a soft, damp cloth to remove dust or water spots.
• 一般檢查： Periodically check all connections and hardware for tightness. Retighten if necessary.

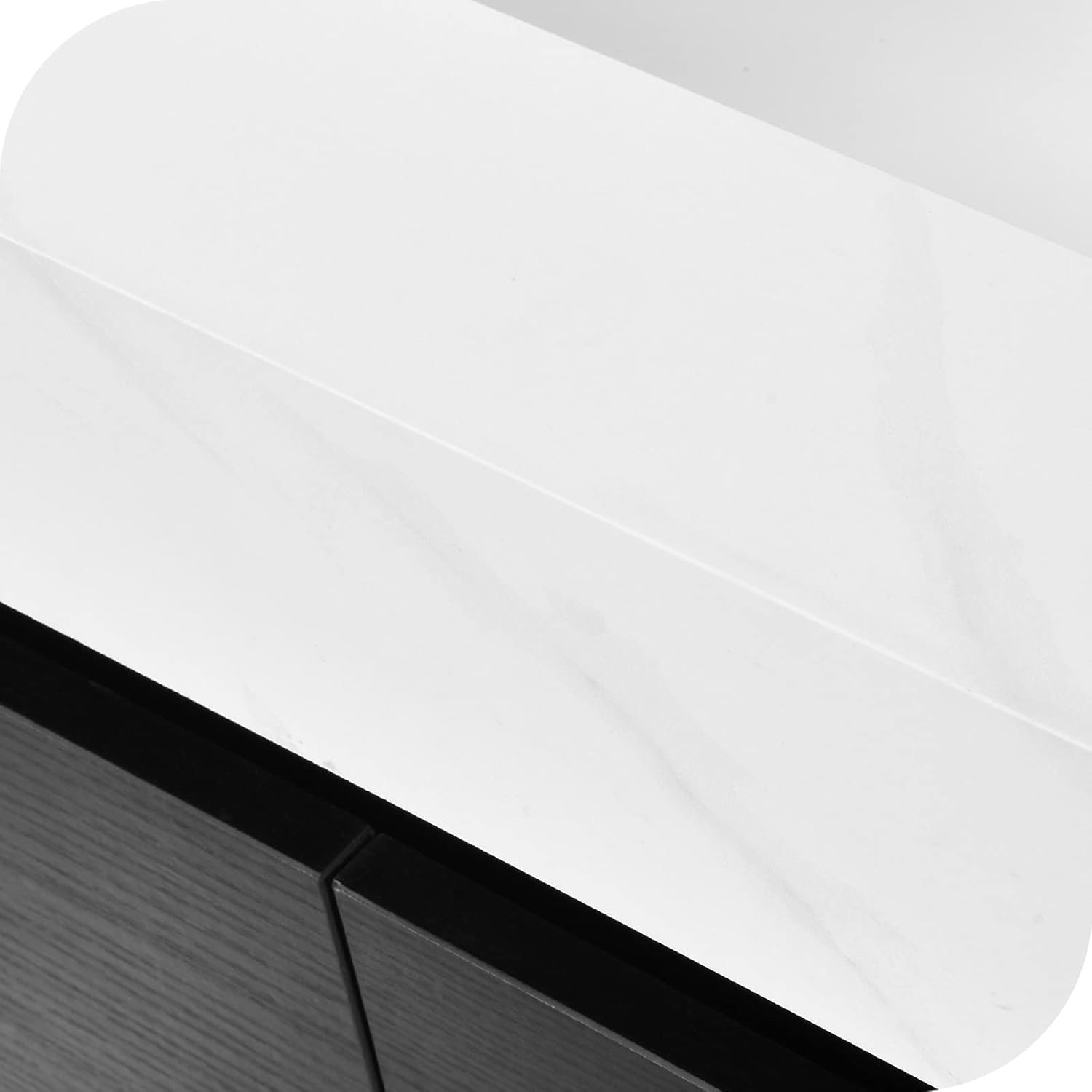

Detailed close-up of the white sintered stone countertop, showcasing its smooth finish and subtle veining, emphasizing its easy-to-clean surface.

8。 故障排除

This section addresses common issues you might encounter with your bathroom vanity.

• Vanity is wobbly:
  • Ensure all metal legs are securely tightened.
  • Adjust the leveling feet on the bottom of the metal legs to stabilize the vanity on uneven floor surfaces.
• 抽屜關不順暢：
  • 檢查抽屜滑軌是否有異物。
  • 確保抽屜滑軌清潔，無雜物。
  • Verify that the vanity is level. An unlevel vanity can affect drawer operation.
• Water leaks from plumbing connections:
  • 立即關閉供水。
  • Inspect all plumbing connections for proper sealing and tightness.
  • Ensure all washers and gaskets are correctly seated.
  • If unable to resolve, consult a qualified plumber.
• Limited space for plumbing:
  • The design of the vanity may require careful planning for plumbing. It may be necessary to temporarily remove drawers for better access during installation.
  • In some cases, minor modifications to the wall or existing plumbing might be required to ensure proper fit.

9. 保固和支持

For warranty information or technical support, please contact DWVO customer service. Keep your purchase receipt and model number (MADWVMDXlF) handy when contacting support.

聯絡資訊通常可以在製造商的官方網站上找到。 web網站或透過您的購買點。
