NorthStar Gas Cold Water Pressure Washer Instruction Manual

介紹

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your NorthStar Gas Cold Water Pressure Washer. Please read this manual thoroughly before operating the unit to ensure proper use and to prevent injury or damage.

The NorthStar Gas Cold Water Pressure Washer is designed for heavy-duty cleaning tasks, featuring a powerful NorthStar e420 420cc engine and a Comet RW belt drive triplex plunger pump, delivering 4000 PSI and 3.5 GPM for effective dirt blasting.

安全資訊

使用高壓清洗機時，請務必遵守基本的安全預防措施，以降低火災、電擊和人身傷害的風險。

• 使用設備前請閱讀所有說明。
• Do not operate the unit without proper ventilation.
• 配戴合適的個人防護裝備，包括護目鏡。
• 啟動引擎前確保所有連接均牢固。
• 讓兒童和寵物遠離操作區域。

安裝和組裝

Before first use, some assembly and preparation are required. Follow these steps carefully:

1. 拆箱： 小心地從包裝中取出所有部件。根據裝箱單核對所有部件是否齊全。
2. 車輪組裝： Attach the 15-inch flat-free tires to the axle. These durable tires provide enhanced portability.
3. 手柄組裝： Secure the handle to the main frame using the provided hardware.
4. 軟管連接： Connect the 50-foot Uberflex® non-marking hose to the pump outlet and the spray gun. Ensure connections are tight to prevent leaks.
5. 機油： Fill the engine with the recommended type and amount of oil. The unit features oil drain cutouts for quick and clean oil changes.
6. 燃料： Fill the fuel tank with fresh, unleaded gasoline. The Electronic Fuel Injection (EFI) system optimizes fuel efficiency.
7. 供水： Connect a garden hose to the water inlet. Ensure the water supply is adequate and free of debris.

圖1： 超過view of the NorthStar Pressure Washer with key components labeled, including the 3/8in. x 50ft. Uberflex non-marking hose, built-in downstream chemical injector, industrial-grade rear entry spray gun with 18 1/2in. quick-connect wand, easy start valve, 15in. commercial-duty flat-free tires, and rugged 13/8in. steel tube frame.

圖2： 特寫 view of the "FUEL INJECTION" cover on the NorthStar e420 engine, highlighting the advanced Electronic Fuel Injection technology.

操作說明

請依照以下步驟安全有效地操作您的高壓清洗機：

1. 準備區域： Clear the work area of any obstacles or items that could be damaged by high-pressure water.
2. 連接供水： Ensure the garden hose is fully connected and the water faucet is turned on completely.
3. 淨化空氣： Squeeze the trigger on the spray gun to purge air from the pump and hose until a steady stream of water flows out. This also engages the Easy Start feature, preventing pressure buildup for smoother recoil pulling.
4. 啟動引擎： Follow the engine manufacturer's instructions for starting. The NorthStar e420 engine with EFI technology ensures reliable starting.
5. 選擇噴嘴： Choose the appropriate quick-connect nozzle for your cleaning task. Different nozzles provide varying spray patterns and pressure levels.
6. 開始清潔： Hold the spray gun firmly and aim at the surface to be cleaned. Maintain a safe distance to avoid damage to the surface.
7. 塗抹清潔劑（可選）： If using detergent, ensure it is compatible with pressure washers. Use the built-in downstream chemical injector for application.
8. 關閉： When finished, turn off the engine, then turn off the water supply. Squeeze the spray gun trigger to release any remaining pressure in the system.

圖3： The NorthStar Pressure Washer demonstrating its 4,000 PSI strength for powerful dirt blasting, powered by the NorthStar E420 engine, a 420cc commercial-grade power unit.

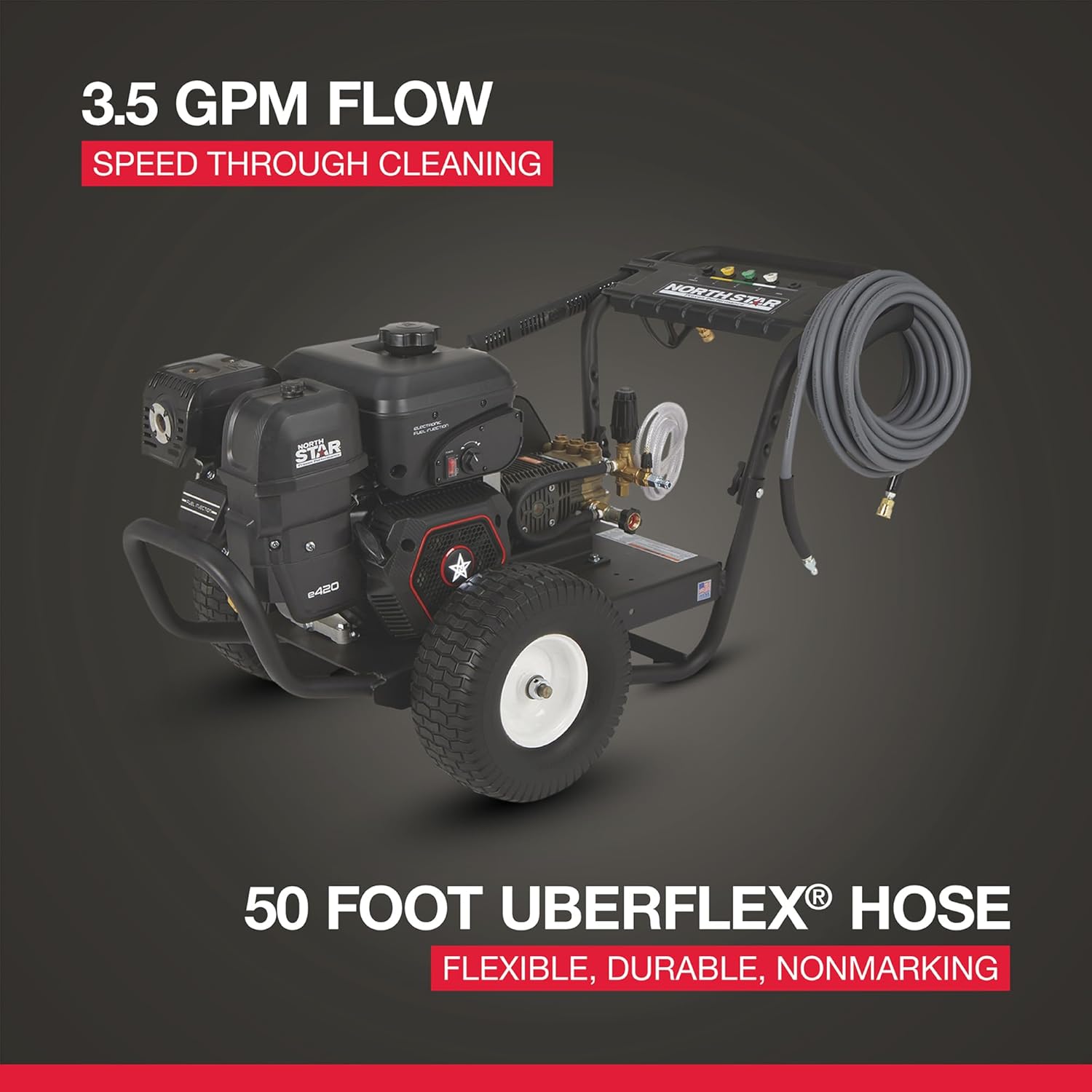

圖4： The NorthStar Pressure Washer showcasing its 3.5 GPM flow rate for speed through cleaning, and the included 50-foot Uberflex® hose, known for being flexible, durable, and non-marking.

維護

定期保養對於延長高壓清洗機的使用壽命和維持其最佳性能至關重要。

• 機油： Check engine oil level before each use. Change oil according to the engine manual's schedule. The unit features convenient oil drain cutouts.
• 泵油： Check pump oil level regularly. Refer to the pump manual for specific maintenance intervals and oil type.
• 空氣過濾器： Inspect and clean or replace the air filter as needed, especially in dusty conditions.
• 火花塞： Inspect and clean or replace the spark plug periodically.
• 噴嘴： 使用提供的噴嘴清潔工具清潔堵塞的噴嘴。
• 軟管和連接： 檢查軟管是否有扭結、割傷或洩漏。確保所有連接都緊固。
• 貯存： For long-term storage, drain all fuel from the tank and carburetor, and use a pump protector to prevent freezing and corrosion.

故障排除

本節介紹您在使用高壓清洗機時可能遇到的常見問題。

For issues not listed or if solutions do not resolve the problem, please contact NorthStar customer support.

規格

Detailed specifications for the NorthStar Gas Cold Water Pressure Washer, Model 1571343:

• 品牌： 北極星
• 型號： 1571343
• 電源： Fuel-powered (Gasoline)
• 引擎： NorthStar e420 420cc with Electronic Fuel Injection
• 泵浦： Comet RW belt drive triplex plunger pump with thermal protection and ceramic plungers
• 最大壓力： 4000 PSI（磅每平方英吋）
• 最大流量： 3.5 GPM（加侖每分鐘）
• 軟管： 50-foot Uberflex® non-marking hose
• 輪胎： 15-inch commercial-duty flat-free tires
• 框架： Rugged 13/8in. steel tube frame
• 物品重量： 270 磅
• 產品尺寸： 50.5 英吋長 x 2.5 英吋寬 x 26.25 英吋高
• 顏色： 黑色的
• 統一產品代碼： 840321747242
• ASIN: B0CS3SS52F

保固和支持

NorthStar products are built for durability and performance. For specific warranty details, please refer to the warranty card included with your product or visit the official NorthStar web網站也提供延保計劃，以延長保障期限。

For technical assistance, parts, or service inquiries, please contact NorthStar Customer Support. Have your model number (1571343) and serial number ready when contacting support.
