BUNACET RGB Neon LED Strip 8M 24V User Manual

一、簡介

Thank you for choosing the BUNACET RGB Neon LED Strip. This 8-meter, 24V flexible LED strip is designed to provide vibrant, customizable lighting for both indoor and outdoor environments. Featuring IP65 waterproofing for the strip itself, along with smart app and remote control options, it offers a dynamic lighting experience. This manual provides essential information for safe installation, operation, and maintenance of your LED strip.

圖 1.1：結束view of the BUNACET RGB Neon LED Strip and its main components, including the 8-meter flexible strip, power adapter, RF remote control, and signal receiver.

2. 包裝內容

請確認您的包裹中所有物品均齊全：

• 1 x 8M RGB Neon LED Strip
• 1 x 24V 1.5A 電源
• 1 個射頻遙控器
• 1 x 3-Key Signal Receiver
• 16 個安裝夾
• 16 個螺絲

Image 2.1: A visual representation of the complete set of components provided with the LED strip, including the strip, power adapter, remote, and mounting hardware.

3.主要特點

• Dynamic & Colorful Lighting: Offers 16 million color choices and music synchronization. Features 864 super bright LEDs (108 LEDs/meter) with a side-emitting design for uniform, spotless illumination.
• 智慧控制選項： Easily control the strip via the included RF remote control or the 'Lotus Lantern' mobile application.
• IP65 Waterproof & Flexible: The silicone-encased LED strip is IP65 rated, making it suitable for both indoor and outdoor use (note: power supply and controller are not waterproof). Its flexible design allows for bending and shaping to fit various decorative needs.
• 安全低波動tage 操作： 工作電壓為安全的 24V 低電壓。tage. The high-quality silicone casing is temperature-resistant and non-flammable.
• 多功能： Includes dimmable brightness, timer settings, music sync mode, and microphone mode for reactive lighting.

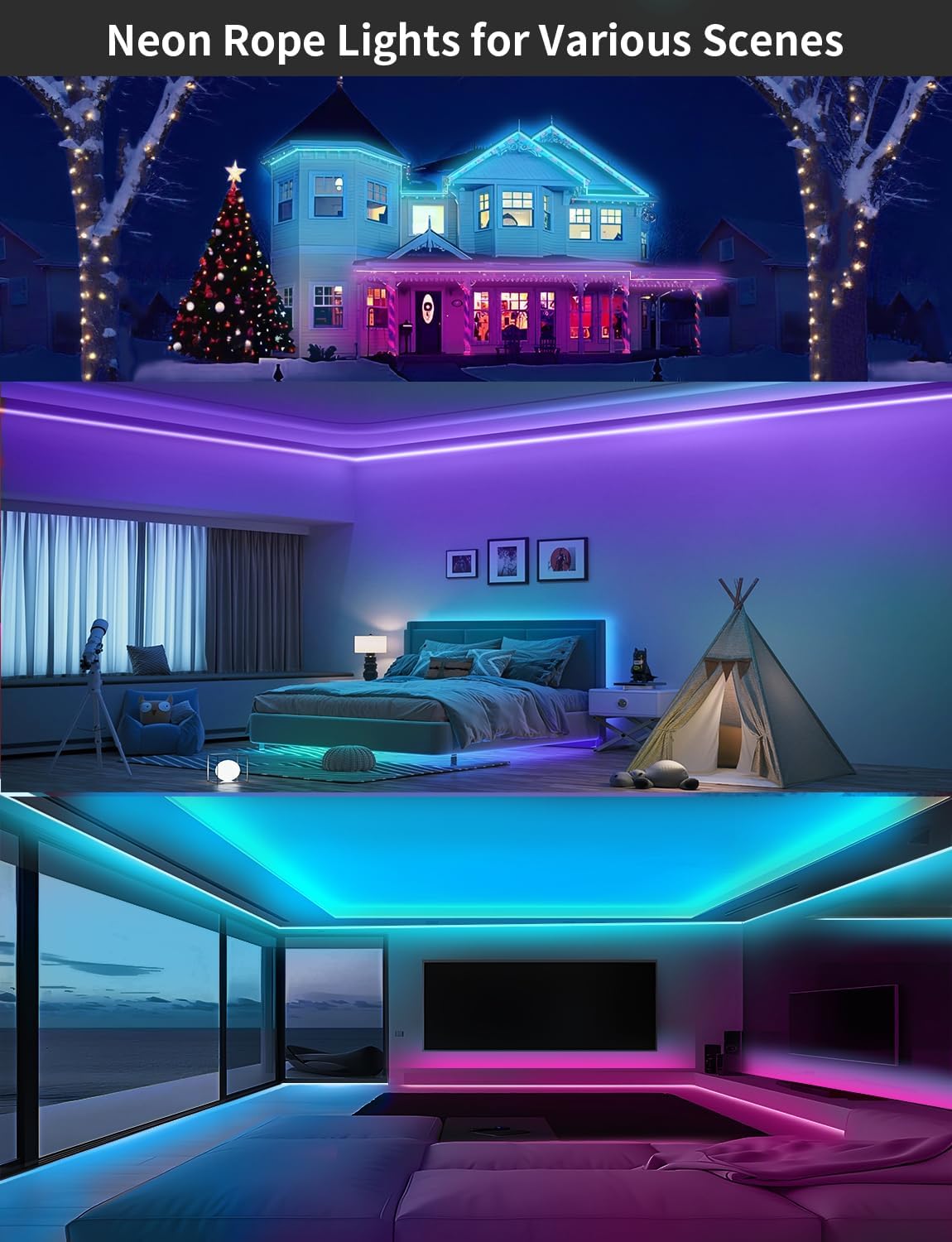

圖片 3.1：範例amples of the LED strip installed in different environments, showcasing its versatility for both indoor and outdoor decorative lighting applications.

4. 設定與安裝

Follow these steps to install your BUNACET RGB Neon LED Strip:

1. 規劃佈局： Before installation, determine the desired path for your LED strip. Ensure the surface is clean, dry, and smooth for optimal adhesion of the mounting clips.
2. 確保地帶安全： Use the provided mounting clips and screws to firmly secure the LED strip along your planned path. Space the clips evenly to ensure the strip is held securely.
3. 連接組件：
   • Connect the LED strip to the 3-key signal receiver.
   • Connect the signal receiver to the 24V power supply.
4. 開機： Plug the power supply into a standard electrical outlet. The LED strip should illuminate.

重要提示： While the LED strip itself is IP65 waterproof, the power supply and the 3-key signal receiver are 不是 防水。請確保這些組件安裝在乾燥的地方，避免受水和潮氣侵襲，尤其是在戶外安裝時。

Image 4.1: A visual guide demonstrating the connection of the LED strip to the signal receiver and power supply, and how to secure the strip using mounting clips.

5. 操作說明

5.1. 使用射頻遙控器

The included RF remote control allows for convenient operation of your LED strip. Before first use, ensure you remove the plastic film from the battery compartment.

• 電源開/關： 按 ON or 離開 按鈕。
• 顏色選擇： 從多種預設顏色中進行選擇。
• 亮度調節： 增加或減少光照強度。
• DIY模式： Customize and save your preferred color combinations.
• 閃光燈設定： Select various dynamic lighting effects.

Image 5.1: The RF remote control, showing its various buttons for color selection, brightness adjustment, and mode changes.

5.2. Using the 'Lotus Lantern' Smart App

For advanced control and features, download the 'Lotus Lantern' app on your smartphone (available for iOS and Android). Follow the app's instructions to pair your device.

• 色輪： Access 16 million colors for precise customization.
• 音樂同步模式： The lights will change color and pattern in rhythm with music played through your phone's microphone or selected audio files.
• 麥克風模式： The lights will pulsate and change colors based on ambient sounds detected by your phone's microphone.
• 定時器設定： Schedule the LED strip to turn on or off at specific times, or set a countdown timer.
• 場景模式： Choose from various pre-programmed lighting scenes for different moods and occasions.

Image 5.2: Screenshots of the 'Lotus Lantern' app interface, illustrating options for time setting, microphone mode, 16 million color selection, and music synchronization.

5.3. Music and Mic Mode Demonstration

6、維護保養

To ensure the longevity and optimal performance of your LED strip, follow these maintenance guidelines:

• 打掃： Gently wipe the LED strip with a soft, dry cloth to remove dust and debris. Do not use harsh chemicals or abrasive cleaners.
• 貯存： If storing the LED strip for an extended period, coil it loosely and keep it in a cool, dry place away from direct sunlight and extreme temperatures.
• 組件保護： Always ensure the power supply and signal receiver are protected from water and moisture, as they are not waterproof.

7。 故障排除

If you encounter issues with your BUNACET RGB Neon LED Strip, refer to the following common problems and solutions:

8. 規格

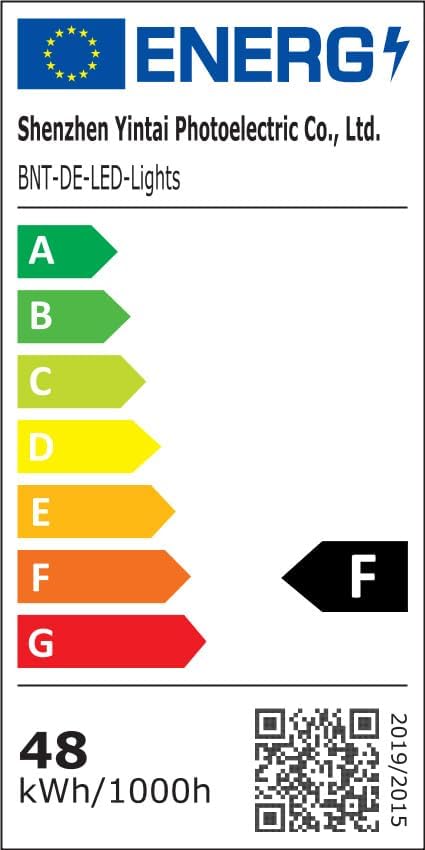

Image 8.1: Energy efficiency label for the LED strip, indicating its energy class. For more details, scan the QR code or visit the EPREL 數據庫.

9. 安全訊息

• Always ensure the power supply and signal receiver are kept dry and away from water, as they are not waterproof.
• Do not cut the LED strip unless specifically indicated by cut marks, as this may damage the circuit and void the warranty.
• Operate the product within its specified voltage (24V) to prevent damage or safety hazards.
• 請將本品放在兒童接觸不到的地方。
• Do not stare directly into the LED lights for extended periods, as it may cause eye strain.

10. 保固和支持

BUNACET is committed to providing high-quality products. For any questions, technical support, or warranty inquiries, please contact BUNACET customer service through the retailer's platform or the official BUNACET web網站。請保留您的購買憑證，以便進行保固索賠。
