FR KDDY001B

FR KD Kaidi Power Supply KDDY001B Instruction Manual

Power Supply with Battery Backup for Power Recliners

一、簡介

This manual provides essential instructions for the safe and efficient use of your FR KD Kaidi Power Supply Unit, model KDDY001B. This unit is designed to power recliners and lift chairs, featuring a 9V battery backup function for continued operation during power outag請在安裝和操作前仔細閱讀本手冊。

2. 安全訊息

  • 警告： 有觸電危險。請勿開啟設備。所有維修工作應由合格人員進行。
  • Ensure the power supply is disconnected from the main power outlet before performing any installation, maintenance, or troubleshooting.
  • This unit is designed for indoor use only. Do not expose to water, moisture, or extreme temperatures.
  • Use only 9V batteries for the backup function. Do not mix old and new batteries, or different types of batteries.
  • 請將其放在兒童和寵物接觸不到的地方。
  • Do not overload the power supply. Ensure your recliner's motor requirements are within the unit's specifications.
  • Inspect the power cord and connectors regularly for any signs of damage. Do not use if damaged.

3. 包裝內容

驗證包裝中是否存在所有組件：

  • FR KD Kaidi Power Supply Unit (KDDY001B)
  • 標準電源線

Note: 9V batteries for the backup function are NOT included and must be purchased separately.

4. 設定與安裝

Follow these steps to properly set up your power supply unit:

  1. 識別連接： Locate the 2-pin style connector on your recliner motor. This unit features a standard 2-pin connector (one round pin, one flat pin) designed to connect directly to compatible recliner motors.
  2. Connect to Recliner Motor: Carefully align the 2-pin connector from the power supply unit with the corresponding port on your recliner motor. Push firmly until it is securely connected.
  3. 連接電源線： Insert the standard power cord into the power supply unit's input port.
  4. 插入牆壁插座： Plug the other end of the power cord into a standard, grounded electrical wall outlet.
  5. 安全放置： Place the power supply unit in a safe, dry location where it will not be stepped on or exposed to liquids. Ensure adequate ventilation.
FR KD Kaidi Power Supply KDDY001B with label and connectors visible

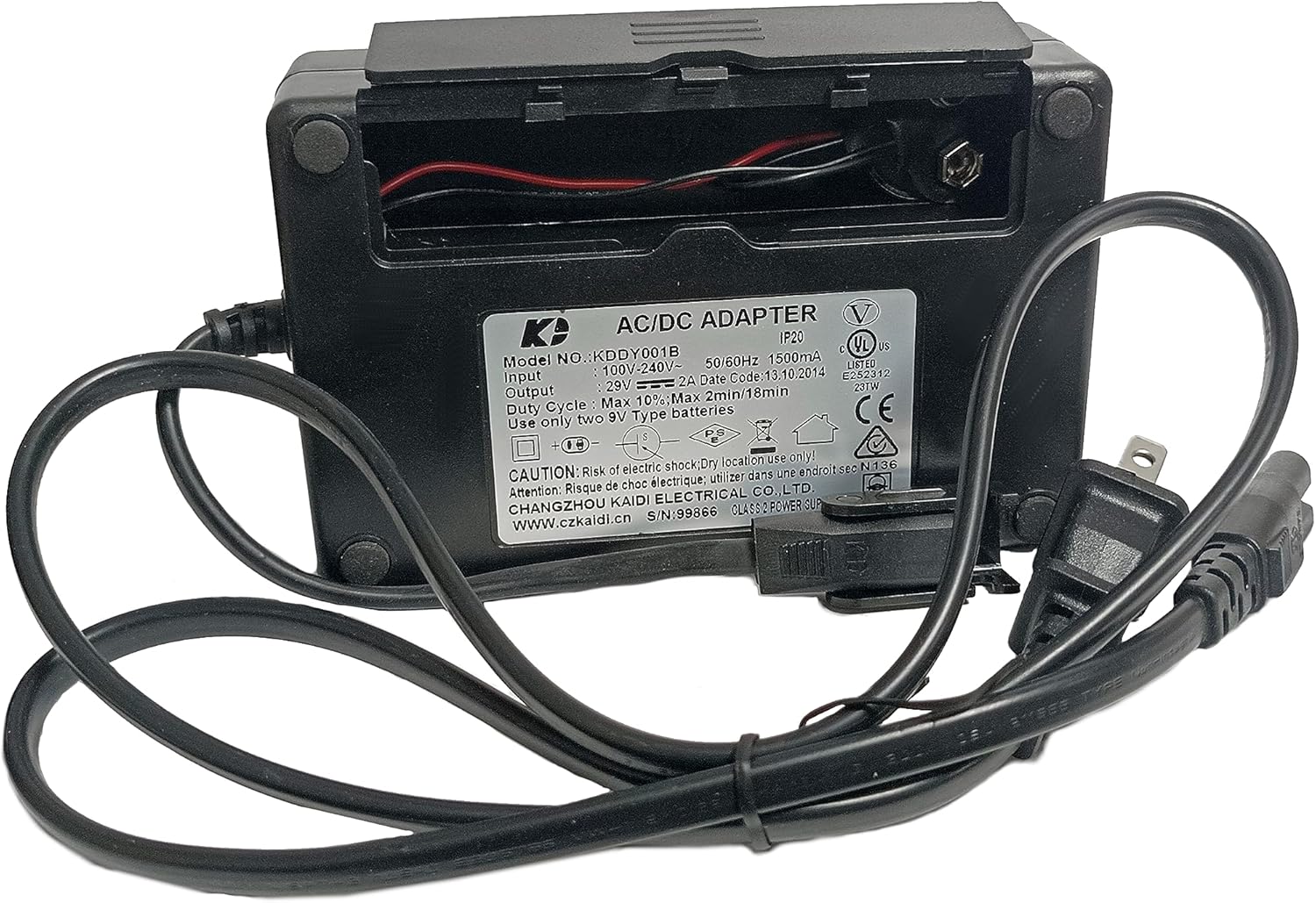

圖 1：頂部 view of the FR KD Kaidi Power Supply KDDY001B, showing the model label, input/output specifications, and the 2-pin connector for the recliner motor. The battery compartment is also visible.

5. Battery Backup Installation and Usage

The KDDY001B unit includes a battery backup feature to allow limited operation of your recliner during a power outage. This requires two 9V batteries (not included).

  1. 打開電池倉： Locate the battery compartment on the power supply unit. Gently slide or unclip the cover to open it.
  2. 插入電池： Insert two new 9V batteries, ensuring correct polarity (+ and - terminals match the markings inside the compartment).
  3. 關閉隔間： 牢固關閉電池倉蓋。
  4. 備份作業： 如果發生斷電tage, the recliner will draw power from the installed 9V batteries. The battery backup is intended for temporary use to return the recliner to a seated position and is not for continuous operation.
  5. 電池更換： Replace batteries periodically (e.g., every 6-12 months) or after extended use during a power outag確保做好準備。
邊 view of the FR KD Kaidi Power Supply KDDY001B

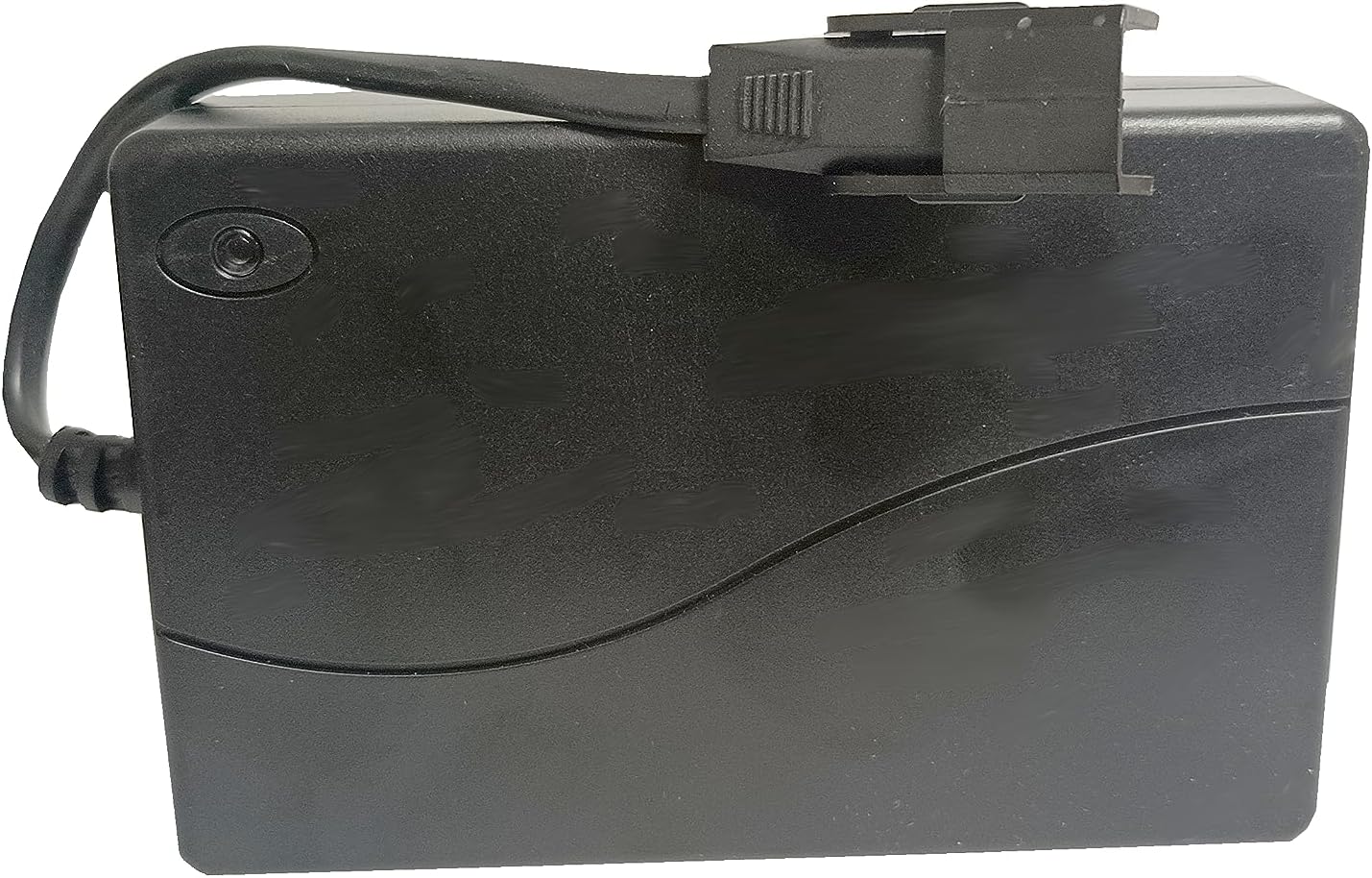

圖 2：側面 view of the FR KD Kaidi Power Supply KDDY001B, showing its compact design. The battery compartment is located on the underside or rear of the unit, as indicated in Image 1.

6. 操作說明

Once the power supply is correctly installed and connected to your recliner motor and a power outlet, your recliner is ready for use. Operate your recliner as you normally would using its integrated controls.

  • Ensure all connections are secure before operating the recliner.
  • The power supply unit will provide continuous power to the recliner motor when plugged into a live outlet.
  • In case of a power failure, the 9V battery backup will activate automatically, allowing for limited movement of the recliner.

7、維護保養

  • 打掃： Disconnect the power supply from the wall outlet before cleaning. Wipe the unit with a dry, soft cloth. Do not use liquid cleaners or abrasive materials.
  • 檢查： Periodically check the power cord, connectors, and the unit itself for any signs of wear, damage, or overheating.
  • 電池檢查： Regularly check the 9V backup batteries. Replace them if they are old or if the recliner's backup function seems weak.

8。 故障排除

問題可能的原因解決方案
Recliner does not move (no power).
  • 電源線未完全插入。
  • 牆上的插座沒有通電。
  • Power supply unit or recliner motor is faulty.
  • 確保電源線牢固地插入設備和牆壁插座。
  • 用其他電器測試牆壁插座。
  • Contact customer support if the unit or motor is suspected to be faulty.
Recliner moves slowly or intermittently on battery backup.
  • 9V batteries are low or depleted.
  • 電池安裝不正確。
  • Replace both 9V batteries with new ones.
  • Check battery polarity and ensure they are correctly inserted.
Unit feels hot to the touch.
  • 負荷過重或通風不良。
  • Ensure the unit has adequate airflow around it.
  • Verify the recliner motor's power requirements do not exceed the power supply's output.
  • Disconnect immediately if excessively hot and contact customer support.

9. 規格

  • 模型： KDDY001B
  • 輸入： 100-240伏特交流電，50/60赫茲
  • 輸出： 29V DC, 2.0A (2000mA)
  • 備用電池： Requires two 9V batteries (not included)
  • 連接器類型： 2-pin (one round, one flat)
  • 方面： 尺寸約為 6 x 4 x 6 英吋（產品尺寸）

10. 保固和支持

For warranty information or technical support, please refer to the retailer's return policy or contact the manufacturer directly. Keep your purchase receipt as proof of purchase.

For additional information or bulk pricing, you may contact customer service for FR products.
