WELLDON Cocoonlip ISOFIX Junior Seat

介紹

Thank you for choosing the WELLDON Cocoonlip ISOFIX Junior Seat. This manual provides important information for the safe and proper use, installation, and maintenance of your new junior seat. Please read this manual thoroughly before use and keep it for future reference.

This junior seat is designed for children approximately 3 to 12 years old, with a recommended height range of 100 cm to 150 cm and a maximum weight of 45 kg. It is compliant with the new R129 safety standard, ensuring enhanced protection for your child.

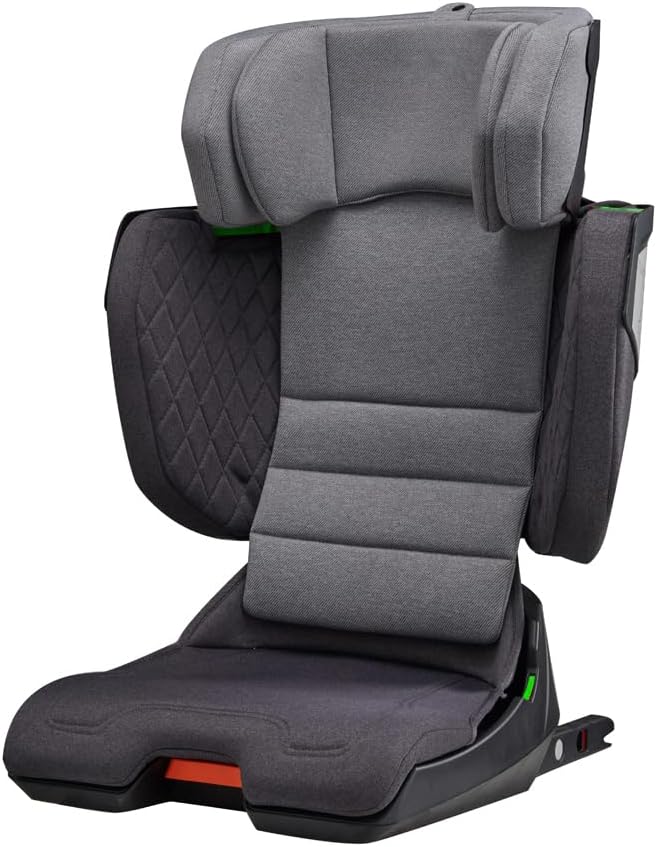

圖片：正面 view of the WELLDON Cocoonlip ISOFIX Junior Seat, showcasing its grey and black fabric design and overall structure.

安全資訊

Your child's safety is paramount. Always ensure the junior seat is correctly installed and your child is properly secured before every journey.

• This seat is R129 compliant, offering enhanced side-impact protection.
• Always use the vehicle's 3-point seat belt in conjunction with the ISOFIX connectors.
• 切勿將您的孩子無人看管地留在座位上。
• Ensure the seat belt is not twisted and lies flat across your child's shoulder and lap.

Image: A child comfortably sleeping in the WELLDON junior seat, illustrating the R129 compliant headrest designed to absorb side impacts and protect the head.

設定和安裝

The WELLDON Cocoonlip Junior Seat features an ISOFIX installation system for secure and straightforward fitting in your vehicle.

1. 準備好座位： Ensure the ISOFIX connectors are fully extended from the base of the junior seat.
2. 找到 ISOFIX 錨點： Find the ISOFIX anchor points in your vehicle's rear seat. These are usually marked with an ISOFIX symbol.
3. Connect to Anchors: Push the junior seat's ISOFIX connectors firmly onto the vehicle's ISOFIX anchor points until you hear an audible 'click' and the indicators turn green (if applicable).
4. 用力推： Push the junior seat firmly against the vehicle's seat back to ensure a tight fit.
5. 保護兒童： Once installed, place your child in the seat and route the vehicle's 3-point seat belt through the designated guides on the junior seat and buckle it. Ensure the lap belt is low across the hips and the shoulder belt crosses the center of the shoulder.

圖片：側面 view of the WELLDON junior seat, showing the ISOFIX base and a diagram indicating proper seat belt routing and installation steps.

操作說明

The WELLDON Cocoonlip Junior Seat offers adjustable features for your child's comfort and safety.

• 頭枕調整： The headrest can be adjusted to multiple height positions to accommodate your growing child. Locate the adjustment lever (usually at the top or back of the headrest) and lift or lower the headrest to the appropriate height, ensuring the shoulder belt guide is just above your child's shoulder.
• 斜倚功能： The seat offers a reclining function to match the angle of your vehicle's seat, providing a more comfortable position for your child. Locate the recline adjustment mechanism (typically near the base or side of the seat) and adjust as needed.

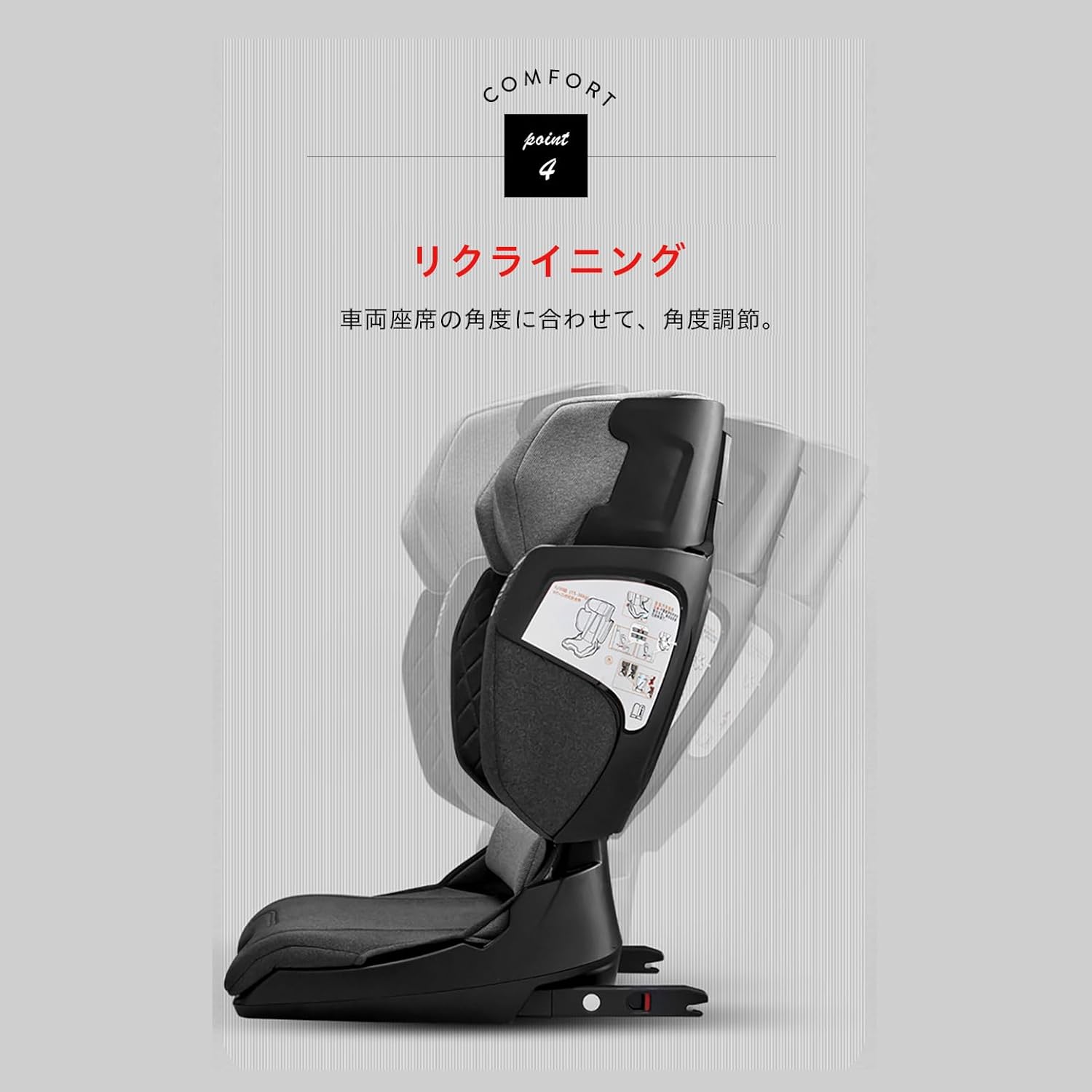

Image: Illustration of the WELLDON junior seat's reclining feature, showing how the seat back can be angled to match the vehicle's seat for optimal comfort.

The seat is also designed for portability and compact storage:

Image: The WELLDON junior seat shown in its compact, folded state, demonstrating its suitability for storage in tight spaces like a train's overhead luggage rack.

Image: A series of diagrams illustrating the step-by-step folding mechanism of the WELLDON junior seat, from upright to compact.

維護

Keeping your junior seat clean is essential for hygiene and longevity.

• 可水洗的蓋子： The seat features a washable cover for easy cleaning. Refer to the care label on the fabric for specific washing instructions (e.g., machine wash cold, gentle cycle, air dry).
• 框架清潔： Wipe the plastic and metal parts of the seat frame with a damp 布和溫和的肥皂。請勿使用研磨性清潔劑或溶劑。
• 通風： The seat is designed with ventilation features to enhance airflow and comfort. Ensure these vents remain clear of obstructions.

Image: Water droplets splashing on the fabric of the WELLDON junior seat, visually representing its washable cover feature for easy cleaning.

圖片：後視圖 view of the WELLDON junior seat, highlighting its integrated air vents with a steam effect to illustrate the ventilation system for enhanced comfort.

故障排除

If you encounter any issues with your WELLDON Cocoonlip Junior Seat, please refer to the following common solutions:

• 安裝後座感覺鬆脫： Ensure the ISOFIX connectors are fully engaged and the seat is pushed firmly against the vehicle's seat back. Check for any obstructions.
• Seat belt does not fit properly: Adjust the headrest height to ensure the shoulder belt guide is correctly positioned just above your child's shoulder. Ensure the belt is not twisted.
• Difficulty adjusting recline/headrest: Check for any obstructions or debris in the adjustment mechanisms. Ensure the seat is not under tension from the vehicle's seat belt during adjustment.

如果問題仍然存在，請聯絡客戶支援。

規格

Image: The WELLDON junior seat with its key dimensions (length, width, height) clearly labeled in centimeters.

保固和支持

Information regarding specific warranty terms and customer support contact details for the WELLDON Cocoonlip ISOFIX Junior Seat is not provided in this manual. Please refer to the product packaging or the retailer's web提供保固資訊和客戶服務聯絡方式的網站。

官方產品視頻

根據提供的產品數據，賣家沒有提供官方產品視頻，無法嵌入到本手冊中。
