Frizzlife FCR100+ Replacement RO Membrane Filter Cartridge User Manual

介紹

This manual provides essential information for the installation, operation, and maintenance of your Frizzlife FCR100+ Replacement RO Membrane Filter Cartridge. This filter is specifically designed for use with the Frizzlife WB99 and WB99-H Countertop Reverse Osmosis Water Filter Systems.

The FCR100+ is a composite 0.0001 micron RO membrane filter engineered to significantly reduce a wide range of contaminants from your tap water, ensuring cleaner and healthier drinking water.

Figure 1: Frizzlife FCR100+ Replacement RO Membrane Filter Cartridge. This image shows the cylindrical filter cartridge with its model number and specifications printed on its label.

更換過濾器的準備

Before replacing the FCR100+ filter, ensure your Frizzlife WB99 or WB99-H system is powered off and disconnected from the power source. It is recommended to drain any remaining water from the system's reservoir to prevent spills during the replacement process.

Ensure you have the correct replacement filter, the Frizzlife FCR100+ cartridge, ready for installation.

篩選功能

The Frizzlife FCR100+ filter is a crucial component of your reverse osmosis system. It features a high-grade 0.0001 micron RO membrane that effectively reduces 99.99% of over 1000 contaminants found in tap water. This includes, but is not limited to, chlorine, lead, heavy metals, fluoride, mercury, VOCs, chloramine, and arsenic.

This filter is designed to process municipal tap water only. Do not use with water that is of unknown quality or microbiologically unsafe.

Maintenance: Filter Replacement and Reset

過濾器更換程序

The FCR100+ composite filter should be replaced approximately every 12個月. The actual replacement period may vary depending on your feed water quality and daily water usage.

1. Turn the old filter counterclockwise: Locate the FCR filter compartment on your WB99/WB99-H system. Gently twist the old filter counterclockwise to unlock it.
2. 拔出： Once unlocked, pull the old filter straight out from the system.
3. 插入新篩選器： Align the new FCR100+ filter with the compartment and push it in firmly.
4. Turn the new filter clockwise: 順時針旋轉新濾芯，直到其牢固鎖定到位。

Figure 2: Step-by-step guide for replacing the FCR filter. This visual aid shows the four actions required: turning the filter counterclockwise, pulling it out, inserting the new filter, and turning it clockwise to secure.

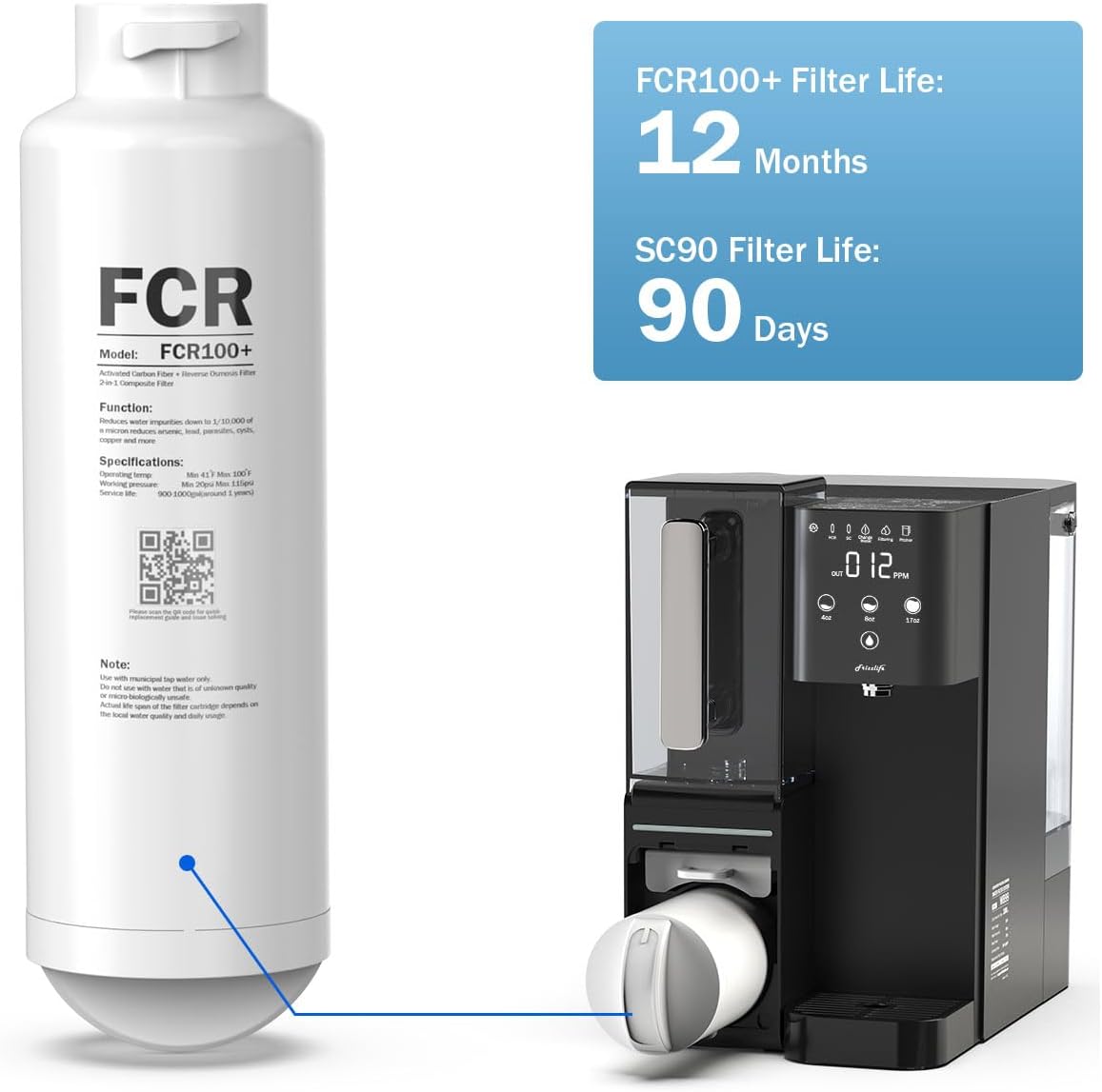

Figure 3: FCR100+ filter life indication. This image highlights the recommended 12-month replacement interval for the FCR100+ filter and shows its position within the WB99 system.

重置濾芯壽命指示器

After replacing the FCR100+ filter, it is essential to reset the filter life indicator on your WB99/WB99-H system to ensure accurate tracking of the new filter's lifespan.

1. 步驟一： Press and hold the 8oz and 17oz buttons simultaneously for 3 seconds.
2. 步驟一： Select the filter you have replaced (e.g., FCR).
3. 步驟一： Press and hold the 8oz and 17oz buttons simultaneously for 3 seconds again to confirm the reset.

Figure 4: Instructions for resetting the filter life. This diagram visually explains the button presses required on the WB99 system's control panel to reset the filter life indicator.

故障排除

If you encounter any issues after replacing the filter, such as leaks or the system not recognizing the new filter, please ensure the filter is securely twisted into place and the filter life has been reset correctly. Refer to the "Filter Replacement Procedure" and "Resetting Filter Life Indicator" sections.

For further assistance, please contact Frizzlife customer support.

規格

保固和支持

For product support, inquiries, or warranty information, please contact Frizzlife customer service:

• 電子郵件： support@frizzlife.com
• Web地點： www.frizzlife.com
• 製造商地址： Room 12-1A, Chengxing Building, Bashalu Street, Ningbo, Zhejiang Province, 315300, China

重要安全警告

This product may pose a choking hazard due to small parts or breakable parts. It is recommended that children under 3 years old avoid using this product. If any parts are broken or damaged, please discard immediately.

Figure 5: Regulatory and warning information. This image displays important safety warnings, disposal instructions, and manufacturer contact details.
