VLAND Projector LED Headlights Instruction Manual

一、簡介

This manual provides detailed instructions for the installation, operation, and maintenance of your VLAND Projector LED Headlights. These headlights are designed to enhance the appearance and functionality of your vehicle with advanced lighting features.

2、相容性

These VLAND Projector LED Headlights are compatible with the following vehicle models:

• Chevy Camaro 2016-2018 (LT, SS, RS, ZL, LS trims)

Designed as a direct OEM replacement for vehicles equipped with factory halogen or xenon front lamps. No vehicle modifications are required for installation.

3.主要特點

• OEM Direct Fitment: Plug-n-Play operation, direct bolt-on OE fitment.
• Amber Sequential Turn Signal: Features a row of amber LEDs that can function as switchback signals.
• Dynamic Animation & Breath Light: A choreographed light sequence activates upon vehicle unlock, providing a modern aesthetic.
• 耐用的結構： IP67 Waterproof, Dust-proof, and Shock-proof design.

4. 安全訊息

• 在進行任何電氣作業之前，請務必先斷開車輛電池。
• 確保所有連接牢固，以防止電路短路或故障。
• If you are unsure about any installation step, consult a professional automotive technician.
• Do not install damaged products. Inspect the package and product upon receipt.

5. 安裝指南

The VLAND Projector LED Headlights are designed for direct replacement and plug-and-play installation. Follow these general steps:

1. 準備： Park your vehicle on a level surface and engage the parking brake. Disconnect the negative terminal of your vehicle's battery.
2. 拆除舊大燈： Carefully remove the front bumper (if necessary) and unbolt the existing headlight assemblies. Disconnect all wiring harnesses.
3. 安裝新大燈： Position the new VLAND headlight assemblies into place. Ensure they fit securely.
4. 連接接線： Connect the main wiring harness to the vehicle's factory connector. For the Daytime Running Light (DRL) function, connect the ACC plug to the fuse box. Refer to the diagram below for fuse box connection points for HID and Halogen editions.

圖 5.1：背面 view of the headlight assembly showing wiring connections and adjustment screws. The dynamic animation can be disabled by unplugging a specific connector. Left/Right and Up/Down adjusting screws are indicated.

Figure 5.2: ACC plug connection for DRL function. Connect to the fuse box as shown for either HID or Halogen editions.

5. 測試功能： Reconnect the battery. Turn on your vehicle's lights to verify all functions (low beam, high beam, DRL, turn signals, dynamic animation) are working correctly.
6. Adjust Headlights: Use the adjusting screws on the back of the headlight assembly to properly aim the light beam. Adjustments for both left/right and up/down are available.
7. 重新組裝： Reinstall the front bumper and any other components removed during installation.

6. 操作

Your VLAND Projector LED Headlights offer several advanced lighting modes:

• 日間行車燈（DRL）： These lights activate automatically when the vehicle is on, providing enhanced visibility during the day.
• Dynamic Animation: A unique light sequence that activates when the vehicle is unlocked, creating a welcoming effect. This feature can be disabled by unplugging the designated connector on the back of the headlight (refer to Figure 5.1).
• 呼吸燈： A subtle pulsating light effect that adds to the modern aesthetic.
• Amber Sequential Turn Signals: When the turn signal is activated, the amber LEDs illuminate in a sequential pattern, clearly indicating your turning intention.
• LED Low Beam & High Beam: Provides powerful and clear illumination for night driving.

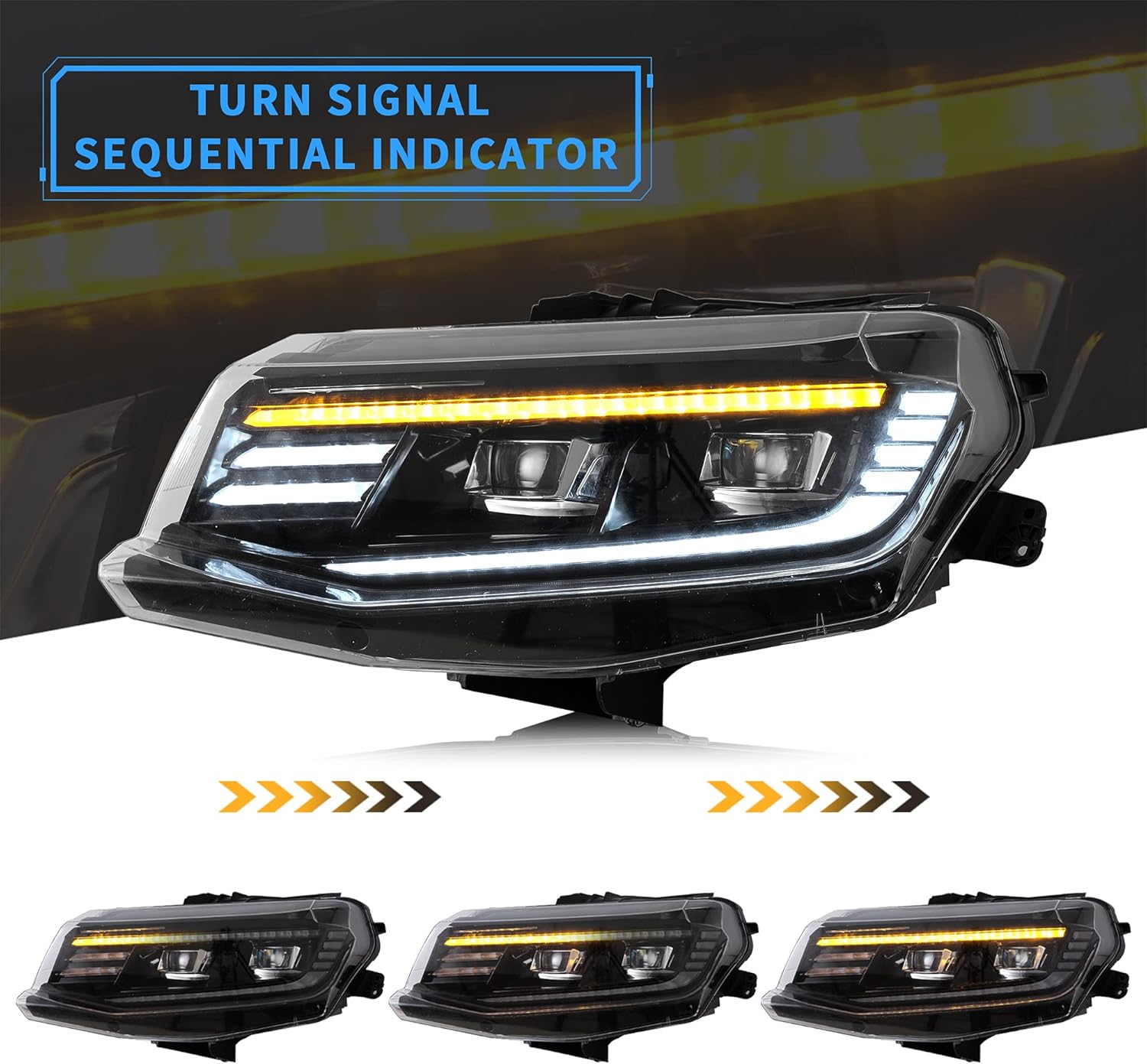

Figure 6.1: The amber sequential turn signal indicator provides clear signaling.

Figure 6.2: Dynamic animation comes to life when the vehicle is unlocked or DRL is activated.

Figure 6.3: Various lighting modes including DRL, low beam, high beam, and sequential turn signal.

7、維護保養

適當的保養能夠確保車頭燈的使用壽命更長，並發揮最佳性能。

• 打掃： Clean the headlight lenses regularly with a soft cloth and mild automotive cleaning solution. Avoid abrasive cleaners that can scratch the polycarbonate lens material.
• 縮合： While the headlights are IP67 weatherproof, condensation can occasionally occur due to temperature changes.

How to Clear Foggy Headlights/Taillights:

• 熱應用： You can apply heat to the assemblies using a hairdryer or heat gun to dry out the condensation.
• 陽光照射： If a heating element is unavailable, remove the headlight bulbs and dust caps, then park the vehicle in direct sunlight to achieve a similar drying effect.
• 預防措施： To combat condensation in areas with limited sunlight or natural heat, keep the vehicle away from water sources. Allow headlights/taillights to dry naturally after rain or car washes.

Figure 7.1: The headlights feature IP67 weatherproof construction for durability against elements.

Figure 7.2: Instructions for clearing condensation from headlights.

8。 故障排除

• 燈不工作： Check all wiring connections to ensure they are secure. Verify that the vehicle's fuses are intact.
• Dynamic Animation Not Activating: Ensure the ACC plug for the DRL function is correctly connected to the fuse box. Check if the specific connector for dynamic animation (refer to Figure 5.1) is plugged in.
• 鏡頭內出現冷凝水： Refer to the 'Maintenance' section for steps on how to clear foggy headlights.
• Product Damaged or Defective: If the merchandise is damaged upon receipt or becomes defective, please contact customer support immediately. Provide the product label, video, and picture proof clearly showing the defect.

9. 規格

10. 保固和支持

• 保固期： All VLAND products found to be defective are covered for a period of One Year following the original purchase date.
• 退換貨政策： For any issues, please retain all boxes, labels, and user manuals received with the package.
• 客戶支援： In the event merchandise is damaged, becomes defective, or needs to be returned, please message us. Provide the product label, video, and picture proof, ensuring the images and video clearly show the defect.
