Bosch GKS 150 Circular Saw User Manual

一、簡介

Thank you for choosing the Bosch GKS 150 Circular Saw. This powerful 1500W tool is designed for efficient and precise cutting in various applications. This manual provides detailed instructions for safe operation, proper setup, maintenance, and troubleshooting to ensure optimal performance and longevity of your tool. Please read this manual thoroughly before first use and keep it for future reference.

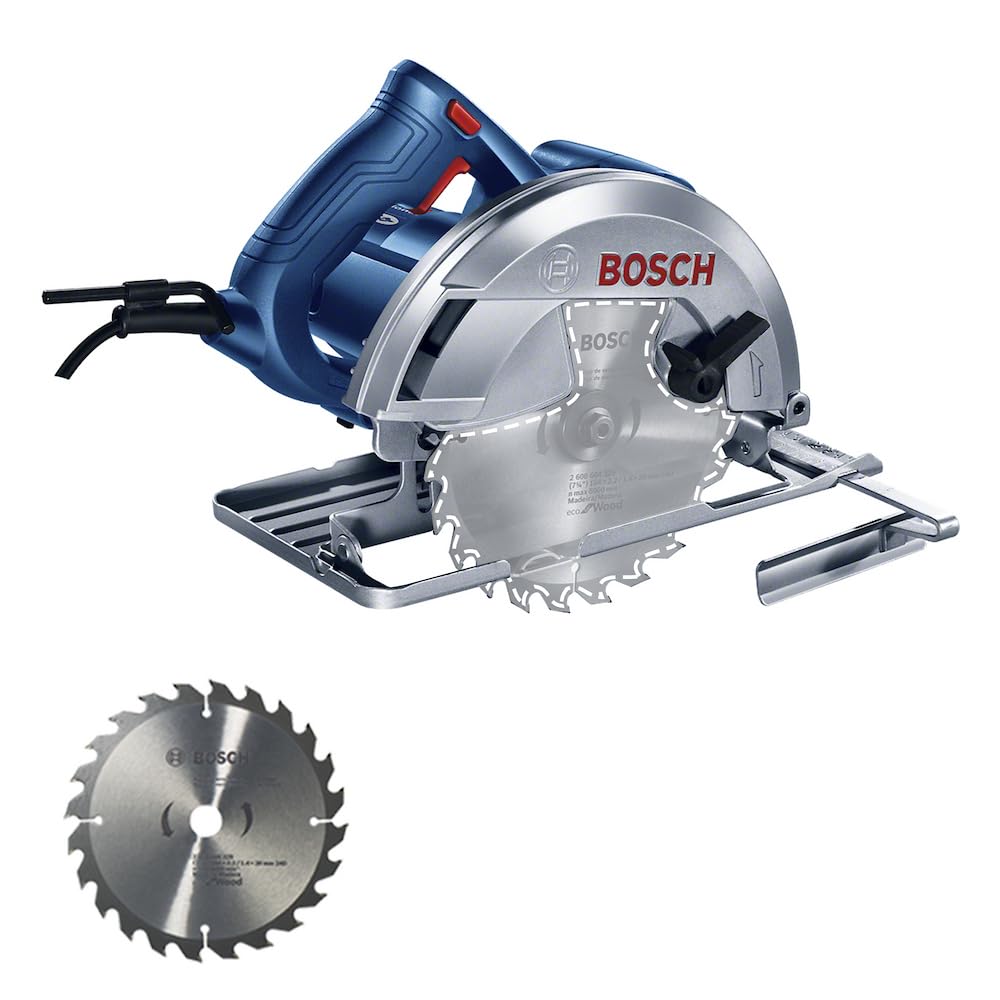

Image 1.1: Bosch GKS 150 Circular Saw, front view. This image shows the overall design of the circular saw, highlighting the blade guard, handle, and base plate.

2. 一般安全說明

務必遵守基本安全預防措施，以降低火災、電擊和人身傷害的風險。請妥善保管本手冊，以便快速查閱。

2.1. 工作區域安全

• 保持工作區域清潔且光線充足。雜亂或黑暗的區域會引發事故。
• 請勿在爆炸性環境中操作電動工具，例如有易燃液體、氣體或灰塵的情況。電動工具產生的火花可能點燃灰塵或煙霧。
• 操作電動工具時，讓兒童和旁觀者遠離。分心可能會導致您失去控制。

2.2。 電氣安全

• 電動工具插頭必須與插座相符。切勿以任何方式改裝插頭。
• 避免身體接觸接地表面，例如管道、散熱器、爐灶和冰箱。如果您的身體接地，觸電的風險會增加。
• 請勿將電動工具暴露在雨中或潮濕的環境中。水進入電動工具會增加觸電風險。
• 請勿濫用電源線。切勿使用電源線來搬運、拉動電動工具或拔除電動工具的插頭。讓電源線遠離熱源、油、鋒利邊緣或活動部件。

2.3.人身安全

• 務必配戴護目鏡。使用安全眼鏡、護目鏡或面罩。
• Wear appropriate hearing protection when operating noisy tools.
• 穿著得體。不要穿寬鬆的衣服或配戴首飾。讓您的頭髮、衣服和手套遠離活動部件。
• 操作電動工具時保持警惕，注意自己在做什麼，並運用常識。
• Use safety clamp使用夾具或虎鉗固定工件。這比用手操作更安全，而且可以解放雙手來操作工具。

3. 包含的組件

The Bosch GKS 150 Circular Saw package typically includes the following items:

• 1 x 博世 GKS 150 圓鋸
• 1 x 使用說明書（本文檔）
• 1 x 24-tooth Saw Blade
• 1 x 平行導軌
• 1 x 六角扳手
• 1 x Dust Extraction Adapter

Image 3.1: The Bosch GKS 150 Circular Saw shown with its standard accessories, including the saw blade, parallel guide, and hex key.

4. 設定和組裝

4.1. 安裝鋸片

1. 請確保鋸子已從電源插座拔下。
2. 按下主軸鎖定按鈕以固定主軸。
3. 使用提供的六角扳手鬆開刀片固定螺絲。
4. Open the lower blade guard and remove the outer flange and old blade (if applicable).
5. Place the new 24-tooth saw blade onto the spindle, ensuring the rotation direction arrow on the blade matches the arrow on the saw's guard.
6. Replace the outer flange and tighten the blade retaining screw firmly with the hex key.
7. 鬆開主軸鎖。

圖 4.1：特寫 view of the saw blade area, illustrating the blade and its protective guard. This is where blade installation takes place.

4.2 調整切割深度

The cutting depth can be adjusted to match the thickness of your workpiece. This prevents unnecessary blade exposure and reduces kickback risk.

1. 拔掉鋸子的插頭。
2. 鬆開位於鋸子側面的深度調節桿。
3. Raise or lower the base plate until the desired cutting depth is indicated on the scale. For optimal safety and cut quality, set the blade depth so that only one or two teeth extend below the workpiece.
4. 將深度調整桿擰緊。

4.3. 調整斜角

此鋸可進行最大 45 度的斜切。

1. 拔掉鋸子的插頭。
2. Loosen the bevel adjustment knob at the front of the saw.
3. 將底板傾斜到斜角刻度上指示的所需角度。
4. 牢固地擰緊斜角調整旋鈕。

圖 4.2：側面 view of the circular saw, showing the depth and bevel adjustment mechanisms on the base plate.

4.4 安裝平行導軌

The parallel guide helps make straight cuts parallel to the edge of the workpiece.

1. 將平行導軌滑入底板前方的槽中。
2. 調整導軌至刀片所需的寬度。
3. 旋緊鎖緊螺絲，將平行導軌固定到位。

5. 操作說明

5.1. 開始之前

• 確保工件牢固amp編輯。
• Verify the blade is sharp and correctly installed.
• Check that all adjustments (depth, bevel, guide) are securely tightened.
• Connect the dust extraction adapter if desired for a cleaner work area.
• Wear all necessary personal protective equipment (PPE).

5.2. 進行切割

1. 將電鋸插入127V電源插座。
2. Hold the saw firmly with both hands, using the main handle and the robust auxiliary handle for stability.
3. 將刀片與切割線對齊。
4. Press the trigger switch to start the saw. Allow the blade to reach full speed before contacting the workpiece.
5. Slowly and steadily push the saw through the workpiece. Do not force the saw; let the blade do the work.
6. Maintain a firm grip and keep the base plate flat against the workpiece throughout the cut.
7. 切割完成後，鬆開扳機，待鋸片完全停止後再將鋸子從工件上抬起。

Image 5.1: An operator demonstrating the use of the Bosch GKS 150 Circular Saw for cutting a wooden board, emphasizing proper grip and positioning.

5.3. 粉塵管理

The GKS 150 features an efficient dust extraction outlet. For best results, connect a suitable vacuum cleaner to the dust extraction adapter to minimize sawdust in your work area.

6、維護保養

Regular maintenance ensures the longevity and safe operation of your Bosch GKS 150 Circular Saw.

6.1. 清潔

• 清潔前務必拔下工具插頭。
• 定期清理通風口，防止馬達過熱。
• 使用刷子或壓縮空氣清除刀片護罩和底板上的鋸屑和碎屑。
• 請勿使用水或化學清潔劑。

6.2. 碳刷更換

The carbon brushes are easily accessible for simple and quick replacement, ensuring consistent motor performance.

1. 拔掉鋸子的插頭。
2. 找到馬達外殼上的碳刷蓋。
3. 旋開蓋子並小心取出舊碳刷。
4. Insert new carbon brushes, ensuring they are correctly oriented.
5. 更換並旋緊碳刷蓋。

6.3. 刀片保養

• Inspect the saw blade before each use for damage or dullness. Replace damaged or dull blades immediately.
• Keep blades clean and free of resin buildup. Use a suitable blade cleaner.

7。 故障排除

本節介紹您在使用圓鋸時可能遇到的常見問題。

如果您遇到此處未列出的問題，或建議的解決方案無法解決問題，請聯絡博世客戶服務或授權服務中心。

三、技術規格

圖 8.1：後部 view of the Bosch GKS 150 Circular Saw, showing its overall dimensions and design.

Image 8.2: Diagram highlighting key features and cutting capacities of the Bosch GKS 150 Circular Saw, including 1500W motor, auxiliary handle, easy brush change, and cutting depths at 90° and 45°.

9. 保固和支持

9.1. 產品保修

The Bosch GKS 150 Circular Saw comes with a 12-month manufacturer's warranty against defects in materials and workmanship. Please retain your proof of purchase for warranty claims.

For additional warranty information or to register your product for extended warranty benefits (if applicable), please visit the official Bosch web請造訪網站或參閱產品隨附的保固卡。

Image 9.1: Information regarding Bosch product warranty, indicating up to 3 years of warranty with registration.

9.2. 客戶支持

如需技術支援、備件或服務諮詢，請聯絡博世客戶支援。您可以在博世官方網站上找到聯絡資訊。 web網站或工具隨附的文件中。

Consider downloading the Bosch BeConnected app for additional support, warranty registration, and access to product information.

Image 9.2: Details about the Bosch BeConnected app, offering features like additional warranty, campaigns, and a loyalty program.
