HiLetgo XL4015 DC-DC 降壓轉換器模組使用手冊

一、簡介

This manual provides instructions for the safe and effective use of the HiLetgo XL4015 DC-DC Buck Converter Step Down Module. This module is designed to efficiently convert a higher DC input voltage 至較低、可調的直流輸出電壓tage, suitable for various electronic applications.

2. 產品結束view

The HiLetgo XL4015 is a non-isolated step-down (BUCK) module. It features high conversion efficiency and adjustable output voltage, making it suitable for various electronic projects requiring a stable lower voltage from a higher source.

主要特點：

• Non-isolated step-down (BUCK) module
• 可調輸出音量tage
• High conversion efficiency (up to 96%)
• 緊湊型設計

組件標識：

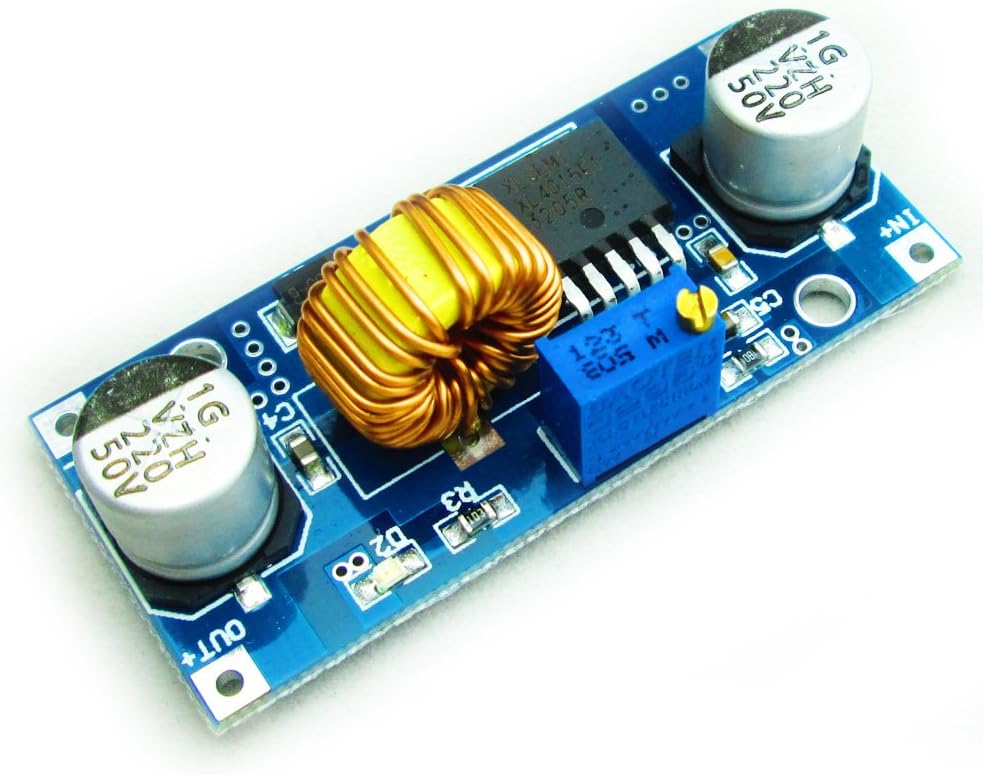

這張圖片顯示的是一個傾斜的 view of the HiLetgo XL4015 DC-DC Buck Converter module. Visible components include the XL4015 chip, an inductor (copper coil), input and output capacitors, a heatsink, and a blue multi-turn potentiometer for voltage adjustment. The input terminals are labeled 'IN+' and 'IN-', and output terminals are labeled 'OUT+' and 'OUT-'.

這張圖提供了俯視視角。 view of the HiLetgo XL4015 module, highlighting the heatsink attached to the main switching regulator chip and the large copper inductor. The input and output capacitor markings are also clearly visible, along with the voltage 調節電位器。

This image shows the bottom side of the HiLetgo XL4015 module's printed circuit board (PCB), revealing solder points and traces. This view can be helpful for understanding mounting options or identifying specific connections from the underside.

3. 規格

4. 設定說明

4.1. 安全注意事項

• Ensure correct input and output polarity. Incorrect connections can damage the module and connected devices.
• 不要超過最大輸入音量tage of 38V or the maximum output current of 5A (recommended <4.5A).
• For output power exceeding 50W, ensure adequate heat dissipation by adding an external heatsink to the module.
• 在進行任何連接或更改連接之前，請務必先中斷電源。

4.2. 接線

The module has clearly marked input and output terminals:

• 將直流電源連接到 輸入+ (positive input) and 在- (negative input) terminals.
• 將負載連接到 輸出+ (positive output) and 出去- (negative output) terminals.

4.3. 卷tag調整

輸出音量tage is adjusted using the onboard multi-turn potentiometer:

1. Connect the input power source (within 4V-38V).
2. Connect a voltmeter to the 輸出+ 和 出去- 終端。
3. Using a small screwdriver, carefully turn the potentiometer clockwise to increase the output voltag或逆時針旋轉以減少它。
4. Adjust until the desired output voltag達到e。

This image shows three HiLetgo XL4015 DC-DC Buck Converter modules. Each module features input and output terminals, a voltage adjustment potentiometer, an inductor, and a heatsink. This visual aids in identifying the components for wiring and adjustment.

5. 操作說明

Once the module is wired and the output voltage is set, you can apply power to the input. The module will then provide the regulated output voltage to your connected load.

• 負載注意事項： Ensure your load does not draw more current than the module's rated capacity (5A, but continuous operation recommended <4.5A). Exceeding this can lead to overheating and damage.
• 熱管理： If the module operates at higher power levels (above 50W), the heatsink will become warm. Ensure proper airflow or consider additional cooling if necessary.

6、維護保養

The XL4015 module generally requires minimal maintenance.

• 打掃： Keep the module free from dust and debris to ensure proper heat dissipation and prevent short circuits. Use a soft, dry brush or compressed air for cleaning.
• 檢查： Periodically inspect connections for tightness and ensure no wires are frayed or damaged.
• 熱管理： Regularly check the temperature of the heatsink during operation, especially under heavy loads. If it becomes excessively hot, reduce the load or improve cooling.

7。 故障排除

7.1. No Output Voltage

• 驗證輸入量tage在指定範圍內（4V-38V）。
• Check input and output wiring for correct polarity and secure connections.
• Ensure the potentiometer has not been adjusted to its minimum setting, resulting in a very low or zero output.

7.2. Incorrect Output Voltage

• Re-adjust the potentiometer carefully while monitoring with a voltmeter.
• 確保輸入量tage is stable and sufficient for the desired output.

7.3. 過熱

• Reduce the load current. The module is rated for 5A, but continuous operation above 4.5A or 50W may require additional cooling.
• 確保模組周圍有足夠的空氣流通。
• Consider adding a larger heatsink if operating consistently at higher power levels.

7.4. Module Failure

• Catastrophic failure (e.g., smoke, burning smell) often indicates exceeding current/voltage limits or incorrect wiring. Disconnect power immediately.
• Ensure the module is used within its specified parameters.

8. 保固和支持

For technical support or any issues encountered with your HiLetgo XL4015 DC-DC Buck Converter module, please contact HiLetgo customer support.

電子郵件： support@hiletgo.com

This image displays the packaging for HiLetgo products, including a sealed bag and a cardboard box. The packaging includes contact information for technical support: support@hiletgo.com, which is useful for users seeking assistance.
